Description

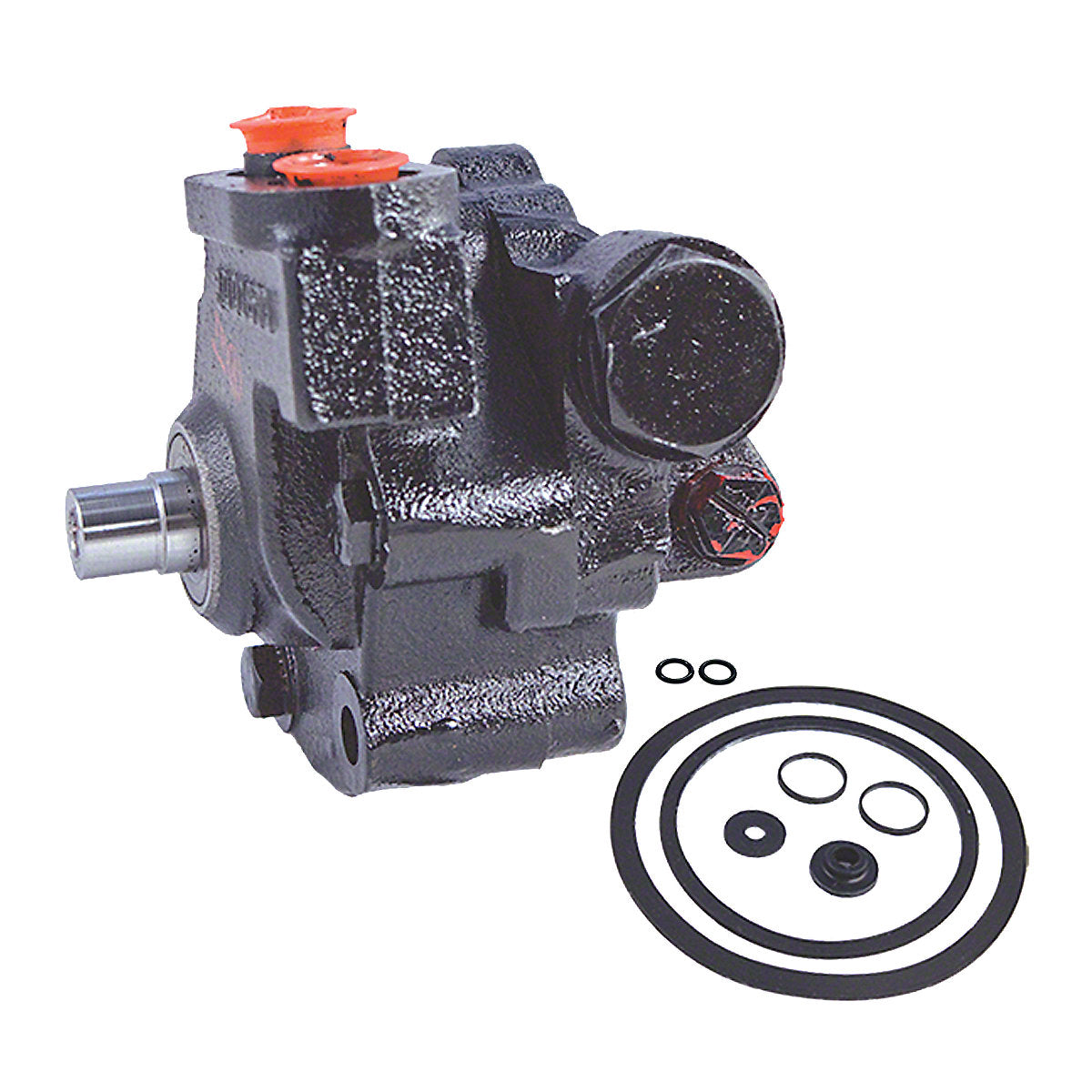

"Quality Aftermarket Belt Driven Power Steering Pump (Only for tractors using Eaton style pump)-Fits White OliverTractor Eaton P761, 20928, 503-1003, 503-1005-005
"Fits: White / Oliver Tractor 66, 77, Super 77, 88, Super 88, 660, 770, 880, Super 66
Specifications
Shaft diameter measures 0.670"
Shaft length (where pulley mounts) measures 0.575"
Pump housing is 2" thick (where bracket bolts to)
Shaft has a 1/8" woodruff key and is threaded for a 5/16" bolt
Flow @ 1500 RPM = 2.5 GPM
Pressure relief set @ 1200 PSI
Does not include brackets, top mounted reservoir or pulley.
Replacement Numbers
Eaton P761, 20928, 503-1003, 503-1005-005
