Description

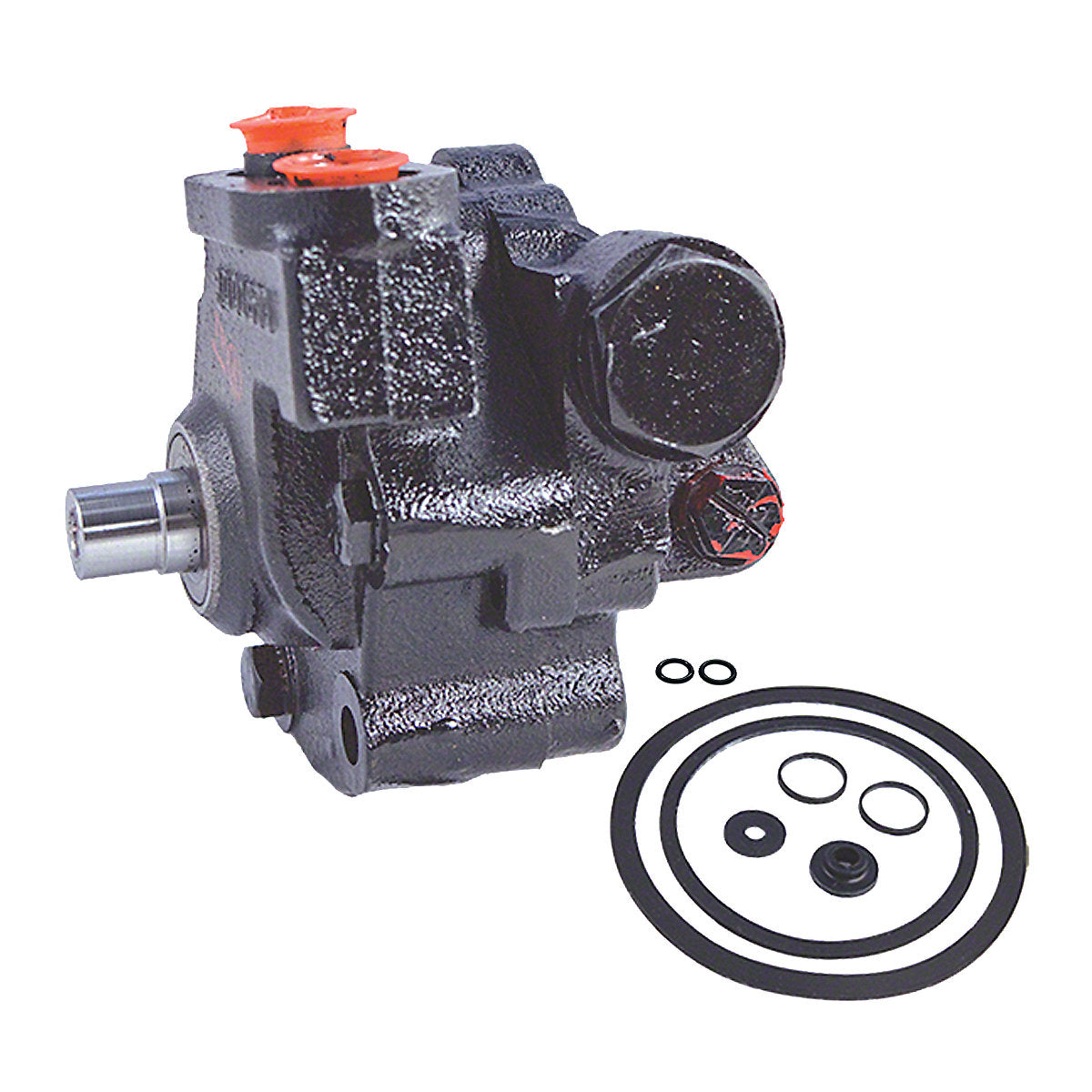

"Quality Aftermarket Belt Driven Power Steering Pump (Only for tractors using Eaton style pump)-Fits Allis Chalmers Tractor Eaton P761, 20928, 503-1003, 503-1005-005
"Fits: Allis Chalmers Tractor WD, WD45 using Eaton belt driven power steering pump
Specifications
Shaft diameter measures 0.670"
Shaft length (where pulley mounts) measures 0.575"
Pump housing is 2" thick (where bracket bolts to)
Shaft has a 1/8" woodruff key and is threaded for a 5/16" bolt
Flow @ 1500 RPM = 2.5 GPM
Pressure relief set @ 1200 PSI
Does not include brackets, top mounted reservoir or pulley.
Replacement Numbers
Eaton P761, 20928, 503-1003, 503-1005-005
"Fits: Allis Chalmers Tractor WD, WD45 using Eaton belt driven power steering pump
Specifications
Shaft diameter measures 0.670"
Shaft length (where pulley mounts) measures 0.575"
Pump housing is 2" thick (where bracket bolts to)
Shaft has a 1/8" woodruff key and is threaded for a 5/16" bolt
Flow @ 1500 RPM = 2.5 GPM
Pressure relief set @ 1200 PSI
Does not include brackets, top mounted reservoir or pulley.
Replacement Numbers
Eaton P761, 20928, 503-1003, 503-1005-005
