Description

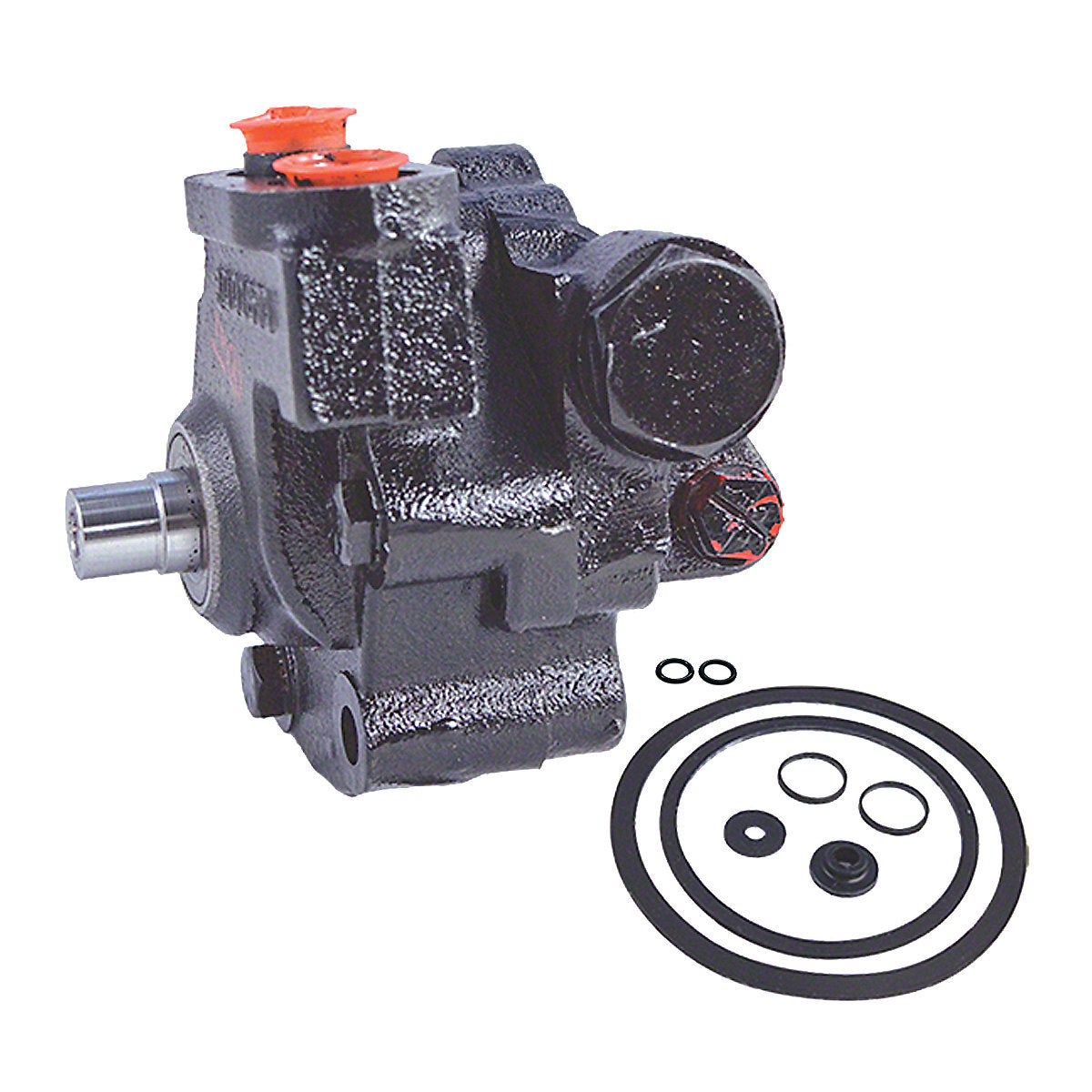

"Quality Aftermarket Belt Driven Power Steering Pump (Only for tractors using Eaton style pump)-Fits John Deere Tractor Eaton P761, 20928, 503-1003, 503-1005-005
"Fits: John Deere Tractor A, B, G, 50, 520, 60, 620, 70, 720, 720 Using Eaton style pump & Char-Lynn power steering
Specifications
Shaft diameter measures 0.670"
Shaft length (where pulley mounts) measures 0.575"
Pump housing is 2" thick (where bracket bolts to)
Shaft has a 1/8" woodruff key and is threaded for a 5/16" bolt
Flow @ 1500 RPM = 2.5 GPM
Pressure relief set @ 1200 PSI
Does not include brackets, top mounted reservoir or pulley.
Replacement Numbers
Eaton P761, 20928, 503-1003, 503-1005-005
"Fits: John Deere Tractor A, B, G, 50, 520, 60, 620, 70, 720, 720 Using Eaton style pump & Char-Lynn power steering
Specifications
Shaft diameter measures 0.670"
Shaft length (where pulley mounts) measures 0.575"
Pump housing is 2" thick (where bracket bolts to)
Shaft has a 1/8" woodruff key and is threaded for a 5/16" bolt
Flow @ 1500 RPM = 2.5 GPM
Pressure relief set @ 1200 PSI
Does not include brackets, top mounted reservoir or pulley.
Replacement Numbers
Eaton P761, 20928, 503-1003, 503-1005-005
