Description

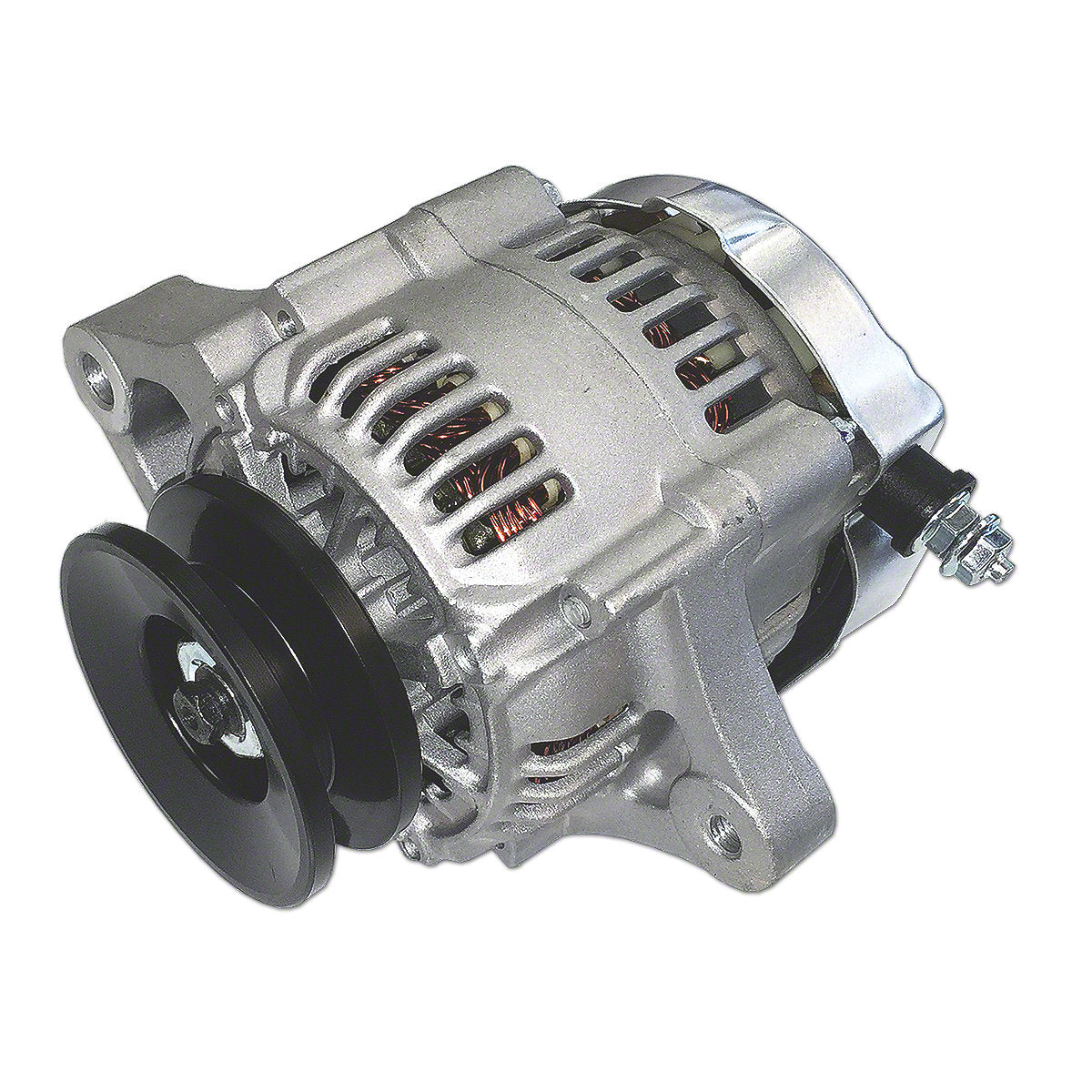

Quality Aftermarket: Mini 35 Amp Alternator w/ Pulley
Fits:Case C,CC, CI, CO, D, DC, DI, DO, L, LA, LAI, LI, RC, S, SC, SI, SO, V, VA, VAC, VAO, VC, VO, 70200B, 210B, 211B, 300, 300B, 310B, 311B, 320, 320B, 400, 400B, 411B, 420B, 430500, 500B, 600B, 700, 730, 770, 830, 870, 900, 970, 990, 995, 1030, 1070, 1090, 1170, 1175, 1200, 1210, 1212, 1270, 1370, 1412, 2470, 2670, 3800, 4600
Specifications
435 Amp
1 wire hook up
Built in regulator
Works with magneto or distributor ignitions
4-1/2" housing diameter
2-3/4" pulley outside diameter
1/2" belt width
For negative ground systems only
Simple 1 wire alternator hook up: Run a wire from the alternator through the ammeter to positive side of battery. Must rev the engine to 800 - 850 RPM in order to self-excite.
If you need a 5/8" pulley please view JJAB2315
