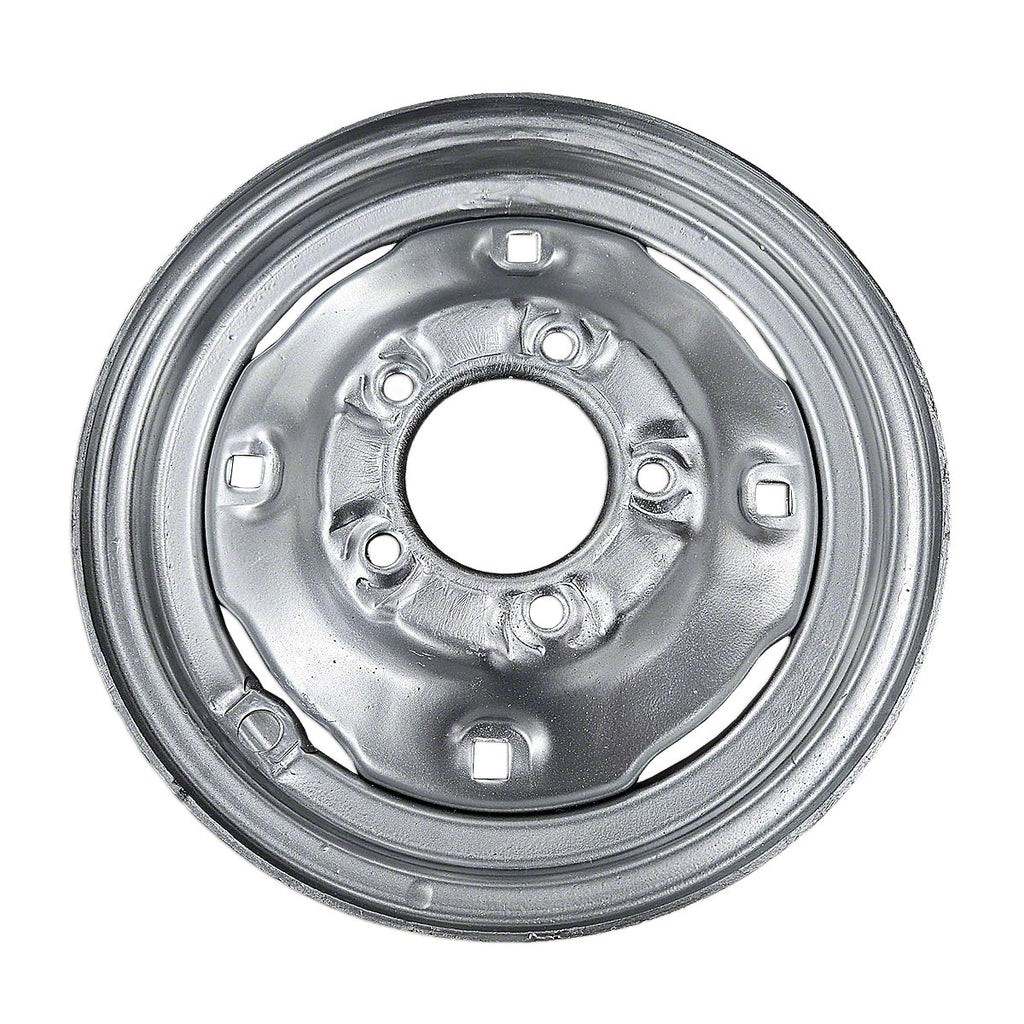

Front Rim fits International Tractor | 2.50" x 12" | 351074R91, 385651A1

Quality Aftermarket Front Rim

Fits International Tractor Models

It is recommended to measure BEFORE purchase. A different size may have been installed on your tractor at one time. Please contact us if you'd like further verification before you purchase.

JJAgParts is not responsible for return shipping on misordered rims.

Specifications

• 2.50" x 12"
• 3.125" inside diameter pilot hole
• 2.625" from center to center on the bolt holes (adjacent)
• 5 lug bolt holes
• Silver powder coat paint
• Backspacing measures 3"
• Fits tire size:
  • 4.00 x 12
  • 4.50 x 12
  • 4.80 x 12

To determine backspacing, lay the wheel flat on the ground with the back of the wheel facing up. Next, lay a straightedge across the wheel and measure the distance from the backside of the mounting surface to the straightedge.

To determine width of rim, measure on the inside (bead to bead), NOT outside to outside.

Use with new lug bolts.

Not designed for tubeless applications

Replacement Numbers
351074R91
385651A1
