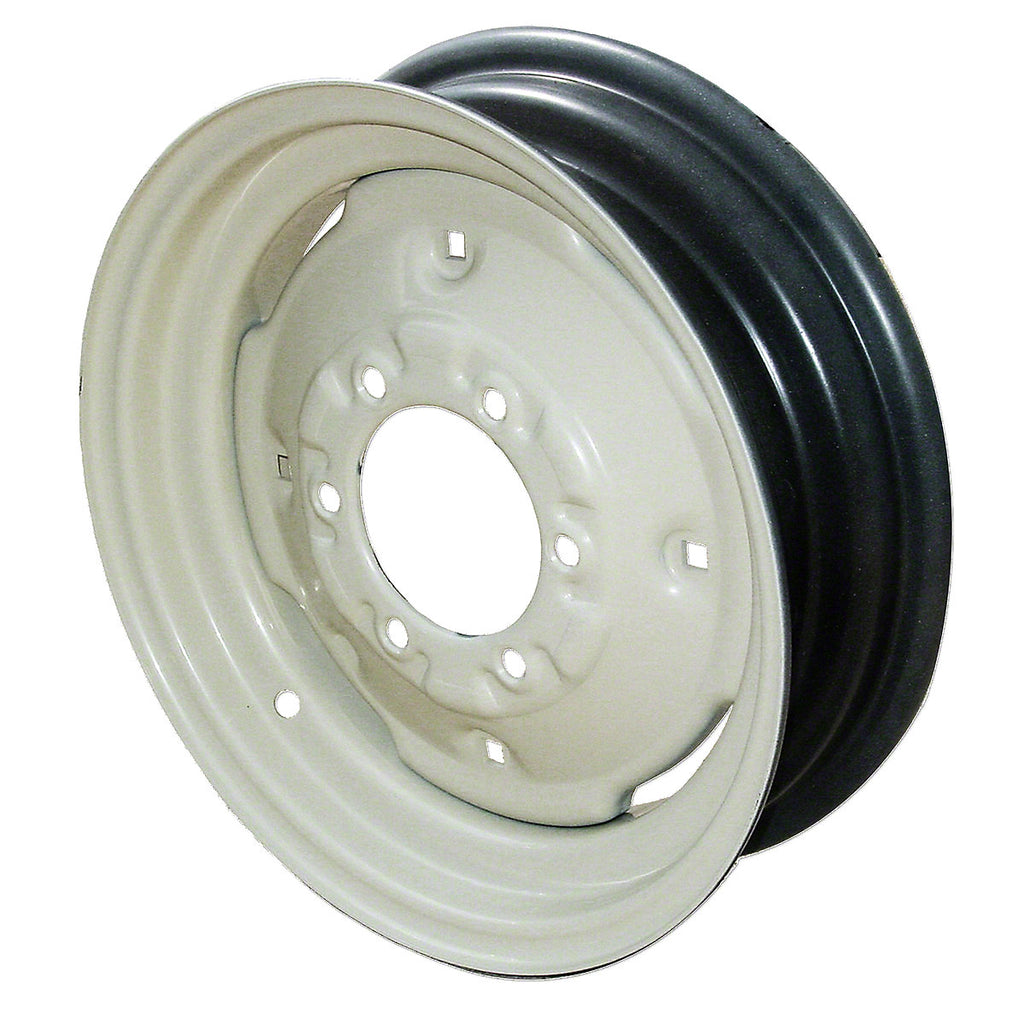

Front Rim-6 Lug fits Massey Tractor | 4.25 x 16 | 195638M91 506020M91 535448M91

Quality Aftermarket Front Rim - 6 Lug

Fits Massey Ferguson Tractor Models:
TE20, TEA20, TO20, TO30, TO35, F40, 20C, FE35, 35, 50, 65, 85, Super 90, 135, 150, 165, 175, 180, 202, 230, 235, 204, 245, 240, 250, 255, 265, 275, 285, 20B, 205, 20, 20C, 202, 203, 204, 2135, 2200, 3165, 20B

Also fits Massey Harris 50 Tractor Model

It is recommended to measure BEFORE purchase. A different size may have been installed on your tractor at one time. Please contact us if you'd like further verification before you purchase.

JJAgParts is not responsible for return shipping on misordered rims.

Specifications

• 4.25" x 16" front wheel
• 6 lug
• 4.625" pilot hole inside diameter
• 6" center to center bolt pattern
• 4" backspacing
• 2500 lb. capacity
• Fits 5.50" x 16" and 6.00" x 16" tires
• 4 square wheel weight holes

Not designed for tubeless applications.

To determine backspacing, lay the wheel flat on the ground with the back of the wheel facing up. Next lay a straightedge across the wheel and measure the distance from the backside of the mounting surface to the straightedge.

To determine the width of rim, measure on the inside from bead to bead, not outside to outside

Use with new lug bolts / nuts

Does not fit imported compact tractors

Replacement Numbers
195638M91
506020M91
535448M91
