Description

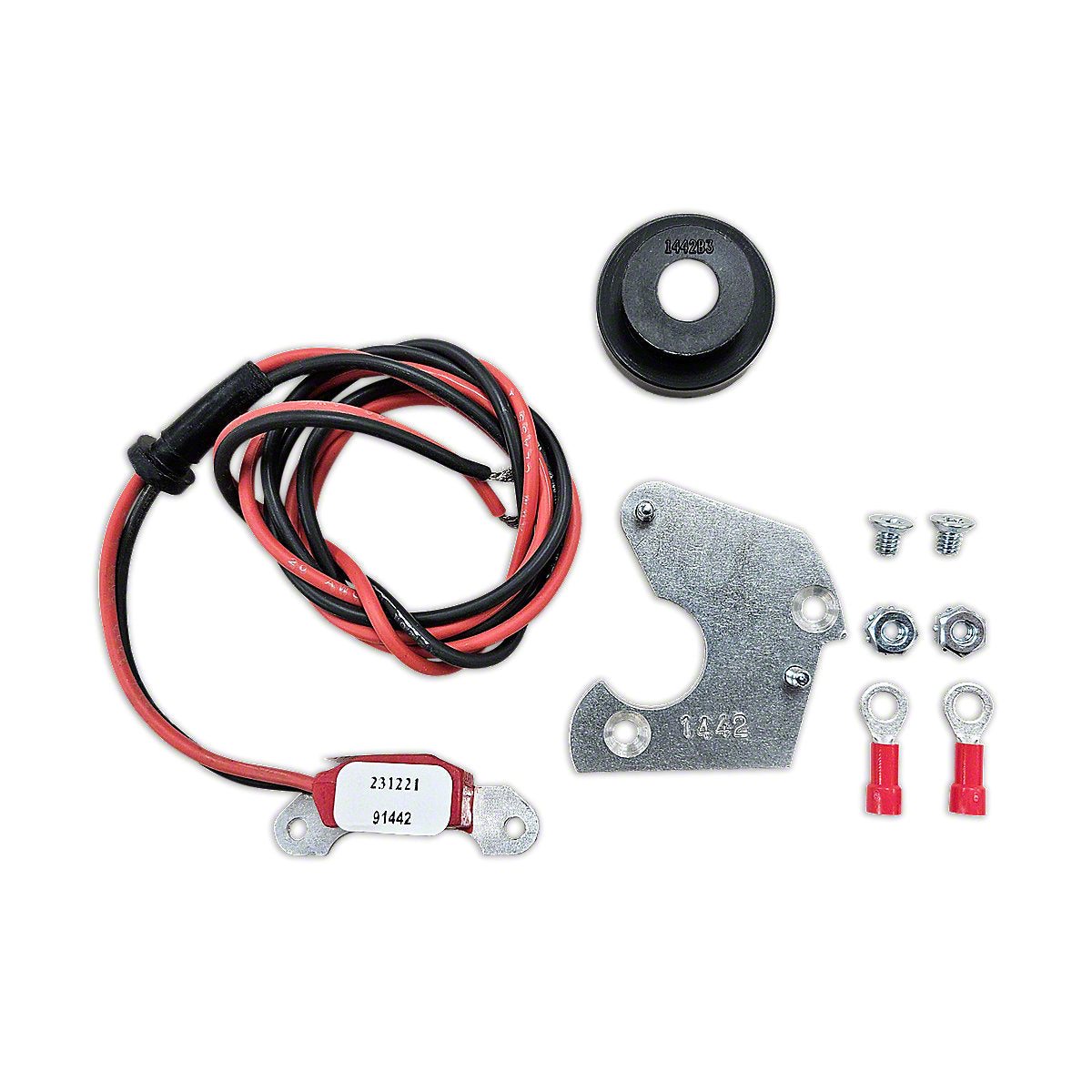

Quality Aftermarket Electronic Ignition Conversion Kit 12 Volt Negative Ground System
Fits International Tractor Models:
A, I4, AV, Super A, Super AV, Super AV-1, B, BN, C, Super C, Cub, Cub LoBoy, 154, 184, 185, H, HV, Super H, Super HV, O4, Super W4, W4, 100, 130, 140, 200, 230, 240, 300, 330, 340, 404
Gas only: M, Super M, MTA, Super MTA, MV, Super MV, Super MVTA, O6, OS4, OS6, Super W6, Super W6TA, W6, W6TA, 350, 400, W400, 424, 444, 450, W450, 504
All models listed with IH horizontal distributor 353898R1 ONLY
Verify distributor number for compatibility before purchase
Electronic Ignition II Conversion Kits work the same way as the original, but the Electronic Ignition II Conversion Kit senses current levels at the coil and adjusts the dwell to maintain peak energy throughout the entire RPM range. Dwell angle is increased or decreased with changing engine RPM and operating conditions.
Electronic Ignition II Conversion Kits have a safety feature to prevent the module from burning out if the key is left in the ON position.
The Electronic Ignition will not function properly with the IH 353900R1 Dust Cover. When fully assembled too much pressure is being applied on the Magnet and will not allow rotation of the Distributor shaft.
Specifications
Fits International Tractor Models:
A, I4, AV, Super A, Super AV, Super AV-1, B, BN, C, Super C, Cub, Cub LoBoy, 154, 184, 185, H, HV, Super H, Super HV, O4, Super W4, W4, 100, 130, 140, 200, 230, 240, 300, 330, 340, 404
Gas only: M, Super M, MTA, Super MTA, MV, Super MV, Super MVTA, O6, OS4, OS6, Super W6, Super W6TA, W6, W6TA, 350, 400, W400, 424, 444, 450, W450, 504
All models listed with IH horizontal distributor 353898R1 ONLY
Verify distributor number for compatibility before purchase
Electronic Ignition II Conversion Kits work the same way as the original, but the Electronic Ignition II Conversion Kit senses current levels at the coil and adjusts the dwell to maintain peak energy throughout the entire RPM range. Dwell angle is increased or decreased with changing engine RPM and operating conditions.
Electronic Ignition II Conversion Kits have a safety feature to prevent the module from burning out if the key is left in the ON position.
The Electronic Ignition will not function properly with the IH 353900R1 Dust Cover. When fully assembled too much pressure is being applied on the Magnet and will not allow rotation of the Distributor shaft.
Specifications
- Fits tractors with 12 volt negative ground system only
- Must use graphite style spark plug wires. DO NOT use stainless steel or copper wires. For graphite spark plug wires, please see: JJS12731
- Requires hot coil, please see: JJS15387
- Replaces the points and condenser with an electronic module
