Economy Carburetor Repair Kit (For Marvel Schebler)
Fits: John Deere A w/ DLTX 7, 8, 12, 13, 18, 19, 24, 33, 38, 39, 41, 51, 53, 71, 72, 108U; B w/ DLTX 10, 34, 67, 73; D w/ DLTX 16, 63; G w/ DLTX 24,51; GP w/ DLTX 15, 17; 50 All-Fuel; Early - up to SN: 5015950; 60 All-Fuel; Early - up to SN: 6013899 Tractors
Specifications
Fits single barrel carburetors only
Kit includes: Needle and seat float lever pin choke and throttle shaft seal gaskets idle adjustment screw instructions

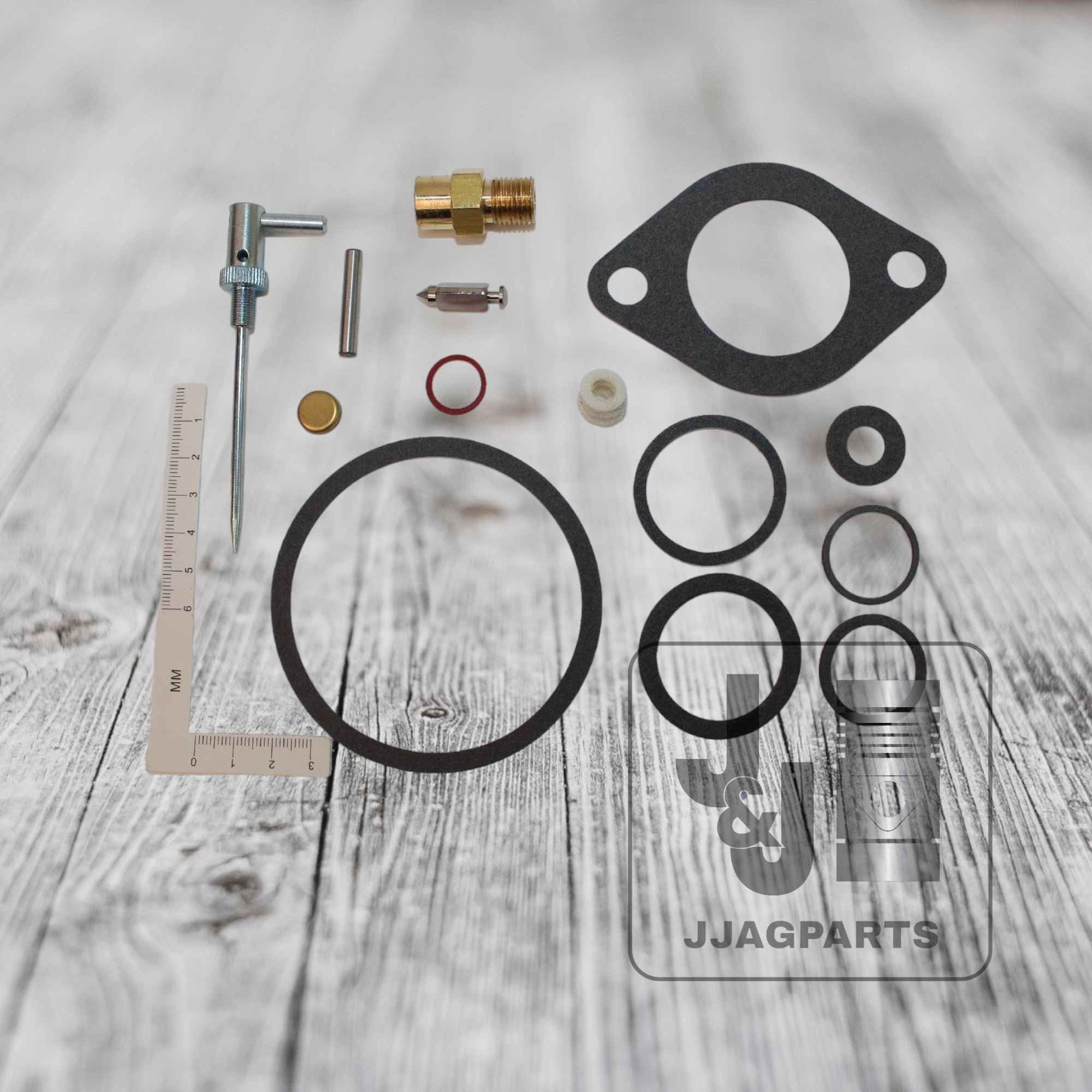

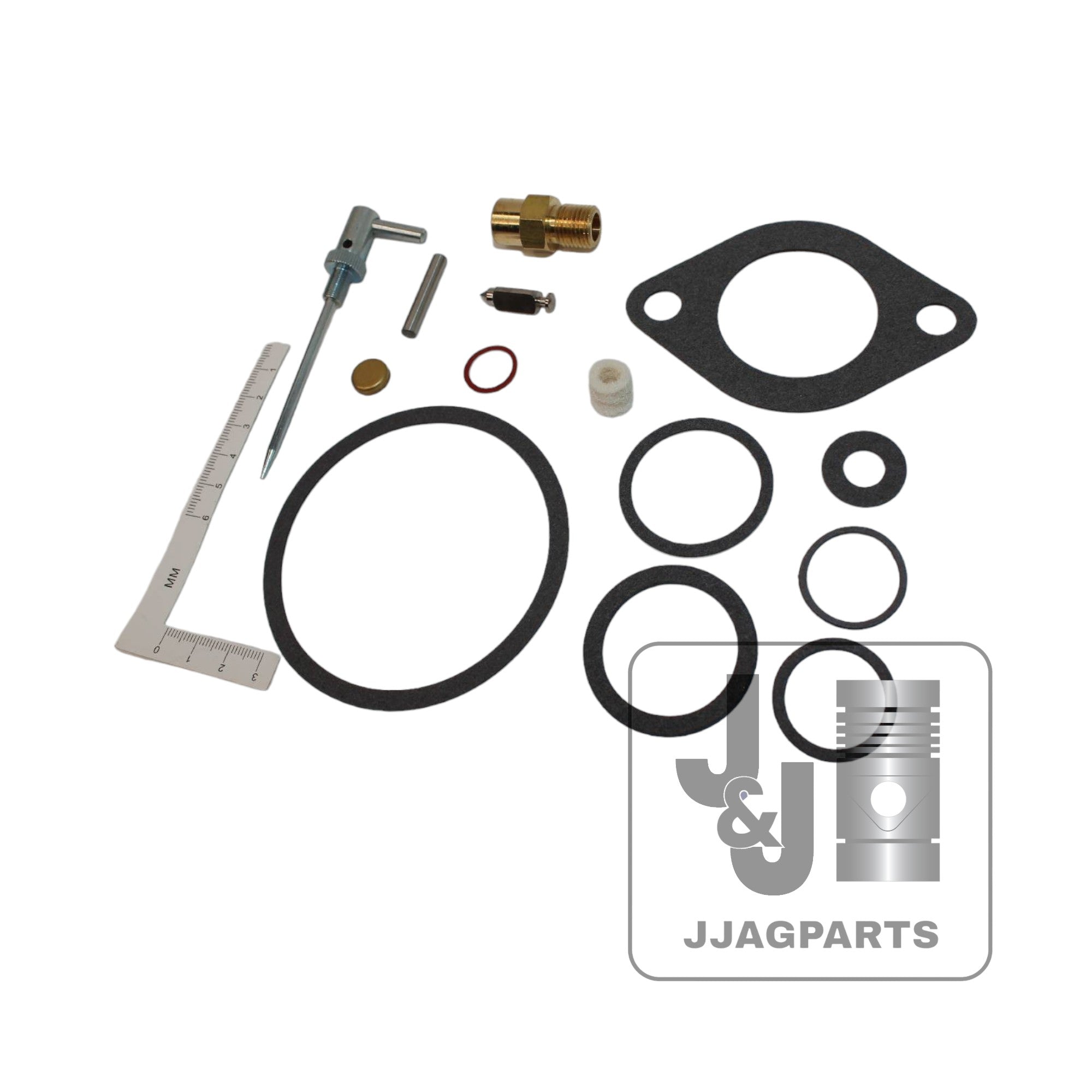

Includes parts shown in picture. This is for reassembly purposes only, instruction sheet and diagram may display parts that are not included in this kit.
Make sure to find your carb manufacturer number in the list below. If your number is not listed, this kit is not the correct kit for your application.
Carburetor Numbers DLTX10 DLTX108 DLTX108U DLTX11 DLTX12 DLTX13 DLTX15 DLTX16 DLTX17 DLTX18 DLTX19 DLTX24 DLTX31 DLTX33 DLTX34 DLTX38 DLTX39 DLTX41 DLTX51 DLTX53 DLTX63 DLTX67 DLTX71 DLTX72 DLTX73 DLTX8
