Description

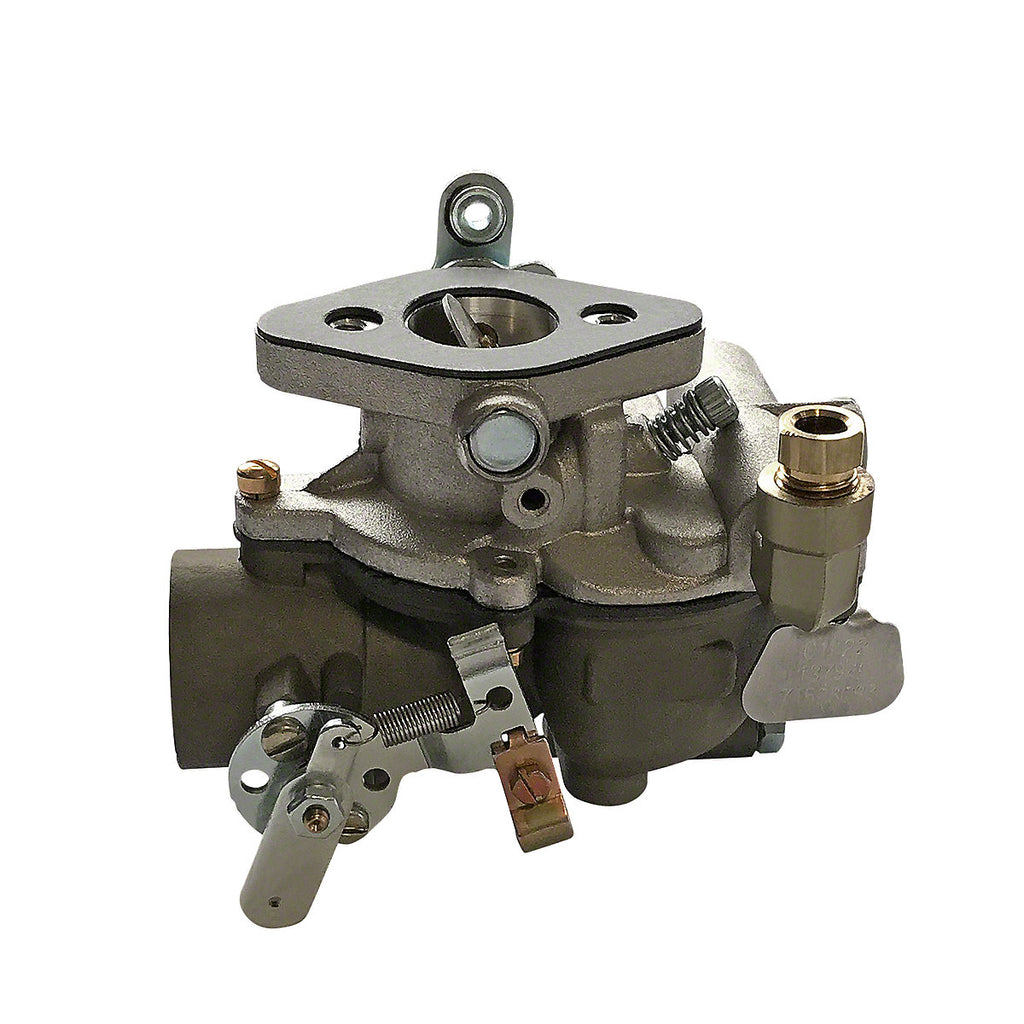

Carburetor (New, Zenith)
Fits International Harvester IH Farmall (Cub, 154 WITH ENGINE SERIAL NUMBER 312390 and up); 184, 185 Tractors
Specifications New Zenith carburetor. The throttle bore measures 1-1/64"" The carb mounting studs measure 1-13/16"" center to center The choke air horn (air inlet) measures 1-5/8"" O.D. The fuel inlet measures 1/8"" NPT. The carburetor mounting flange gasket is included
Carburetor Numbers 13781,13794
Will fit older Cub tractors, with two gaskets to clear the butterfly.
Replacement Numbers 364579R91, 70949C91, 70949C92, 71253C93
