Description

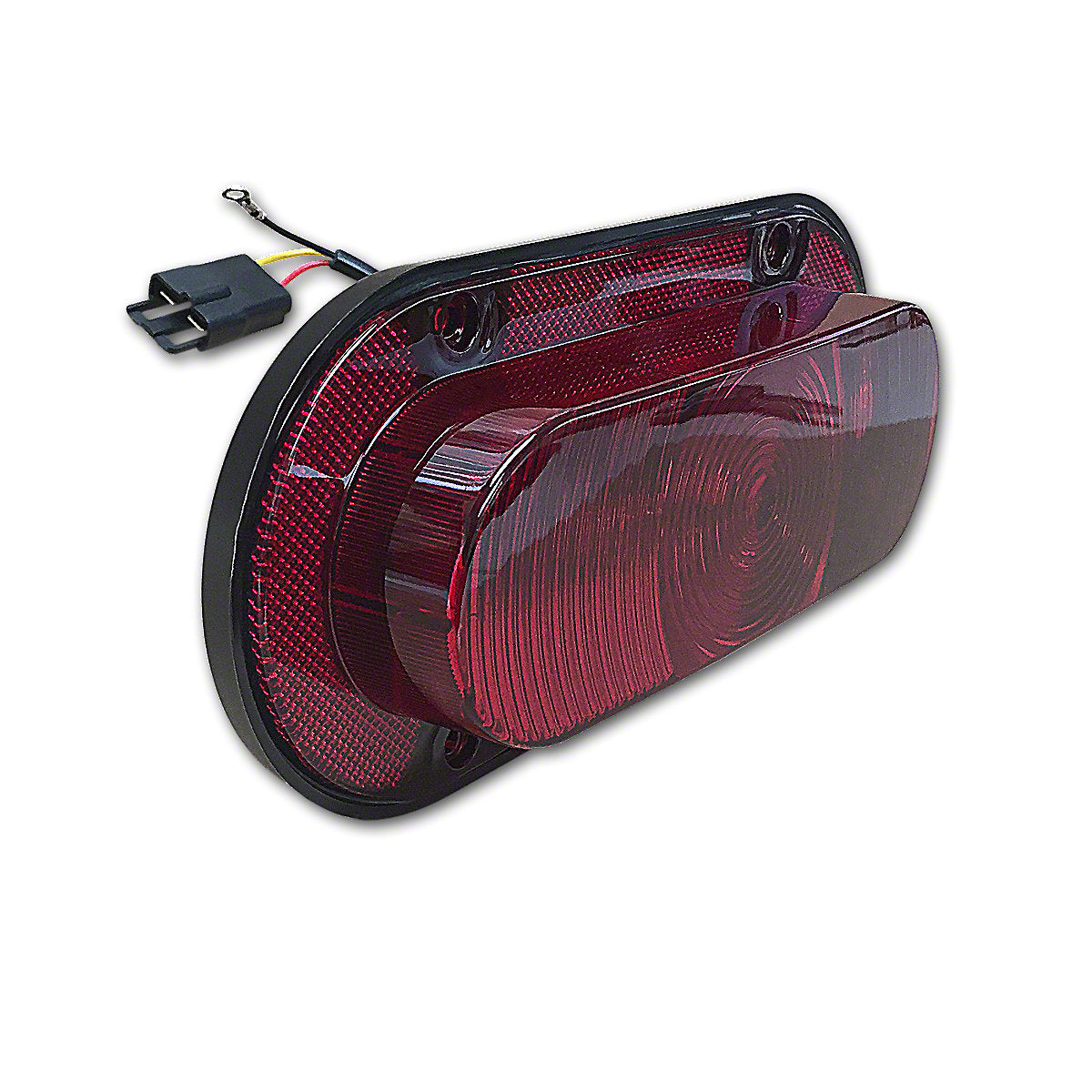

Quality Aftermarket AR78825 6 to 30-volt LED Tail/Warning Light w/ Red Lens Fits John Deere Tractor
Fits: 2140 SN: 430000 & up, 2350, 2355, 2550, 2555, 2750, 2755, 2940, 2950, 2955, 3055, 3140, 3150, 3155, 3255, 4030, 4040, 4050, 4230, 4240, 4250, 4430, 4440, 4450, 4455, 4630, 4640, 4650, 4840, 4850, 8430, 8440, 8450, 8630, 8640, 8650, 8850 (All w/ Sound-Gard or open station cabs)
Specifications
4 mounting holes 4" apart side to side & 3" apart top to bottom, 7.900" o/a length, 3.600" top to bottom, (3) 3 watt LED bulbs
Black wire must be grounded properly for the light to function. Red wire = high beam & yellow wire = low beam.
Replacement Numbers
AR78825
Fits: 2140 SN: 430000 & up, 2350, 2355, 2550, 2555, 2750, 2755, 2940, 2950, 2955, 3055, 3140, 3150, 3155, 3255, 4030, 4040, 4050, 4230, 4240, 4250, 4430, 4440, 4450, 4455, 4630, 4640, 4650, 4840, 4850, 8430, 8440, 8450, 8630, 8640, 8650, 8850 (All w/ Sound-Gard or open station cabs)
Specifications
4 mounting holes 4" apart side to side & 3" apart top to bottom, 7.900" o/a length, 3.600" top to bottom, (3) 3 watt LED bulbs
Black wire must be grounded properly for the light to function. Red wire = high beam & yellow wire = low beam.
Replacement Numbers
AR78825
