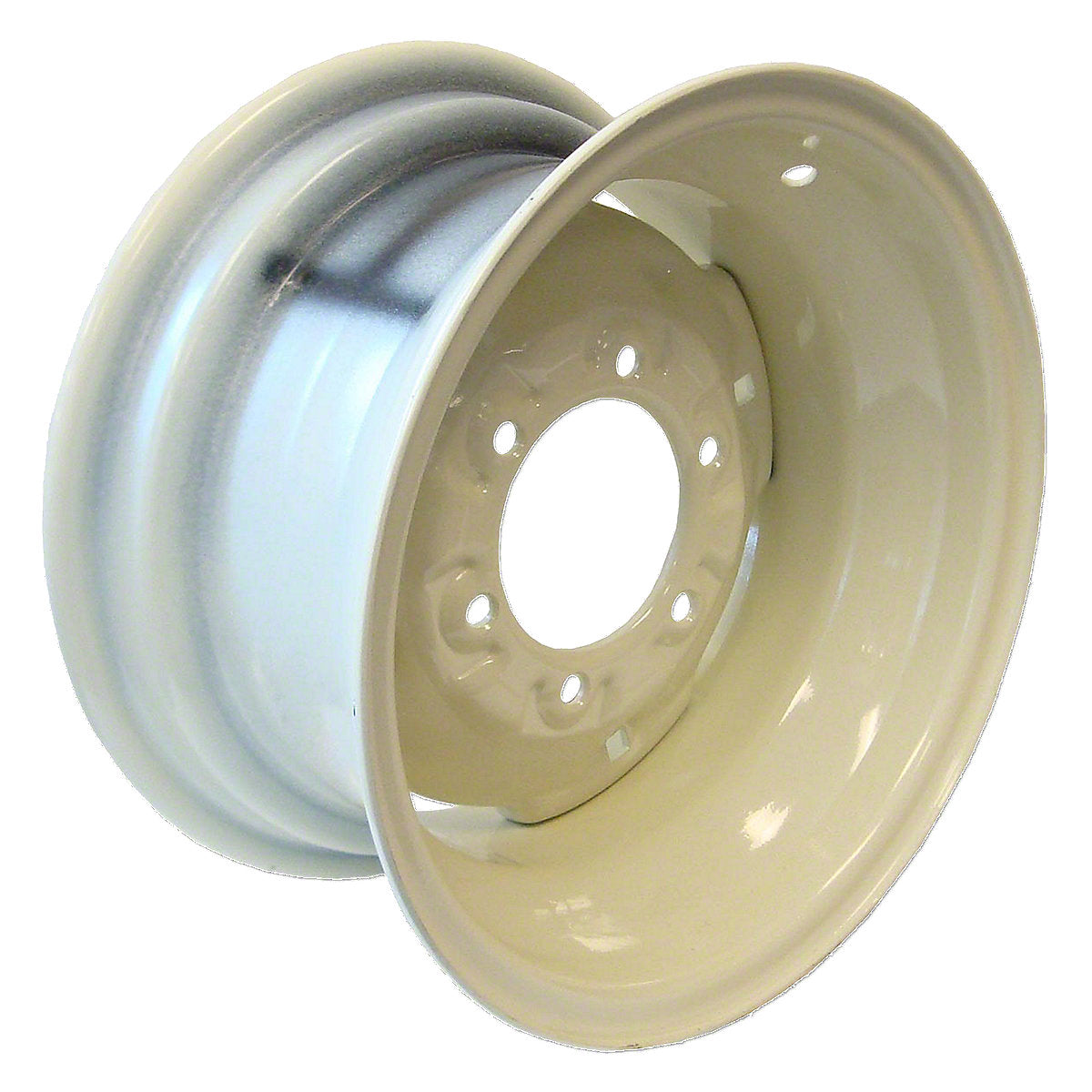

Front Rim - 6 Lug Fits International Tractor | 8" - 15” | 486101R1, 528687R1

Quality Aftermarket Front Rim - 6 Lug

Fits International Tractor Models:
Hydro 100, Hydro 70, Hydro 84, Hydro 86, 385, 464, 484, 584, 656, 666, 684, 686, 766, 784, 786, 826, 856, 884, 886, 966, 1026, 1066, 1456, 1466, 1468, 3088, 3288, 3688

It is recommended to measure BEFORE purchase. A different size may have been installed on your tractor at one time. Please contact us if you'd like further verification before you purchase.

JJAgParts is not responsible for return shipping on misordered rims.

Specifications

• 8" x 15"
• 6 Lug
• 4.625" pilot hole inside diameter
• 6" center to center bolt pattern
• 4.75" Backspacing
• 4 wheel weight holes
• For 7.50" x 15" thru 9.5" x 15" tires

To determine backspacing, lay the wheel flat on the ground with the back of the wheel facing up. Next lay a straightedge across the wheel and measure the distance from the backside of the mounting surface to the straightedge.

Use with new lug bolts / nuts

To determine the width of rim, measure on the inside from bead to bead, not outside to outside.

Not designed for tubeless applications.

Replacement Numbers
486101R1
528687R1
