Description

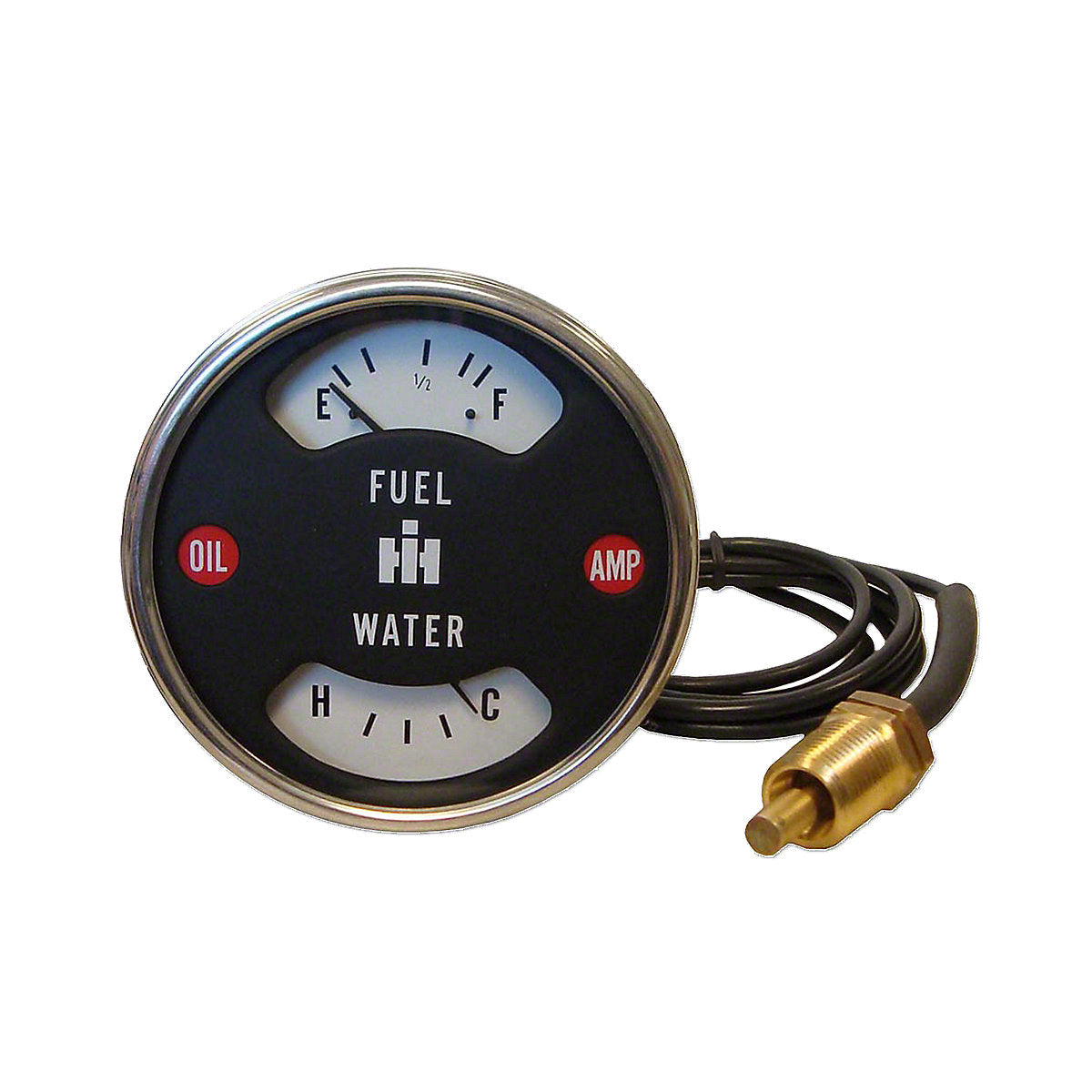

Quality Aftermarket Cluster Gauge Assembly w/ Round Threaded Terminals (Fuel & Temperature)
Fits International Harvester IH (Hydro 70, Hydro 86, 666, 1026, 1206, 1256, 1456, 4166, 4186 Diesel Only), 404, 424, 444, 606 Serviceable for Gas Model (gauge face is different for temperature & will have a longer capillary tube); 504 Following Gas & Diesel; 656, 706, 756, 806, 826, 856 Gas & Diesel; Tractors
Specifications The lead thread size on this cluster gauge assembly measures 11/16"" - 24 UNEF 4.240"" housing outside diameter 1.230"" housing depth 80"" lead length White background Gauge must be grounded to work properly; you must run an extra ground wire to the sender ground. OHM reading 32 Full - 244 Empty.

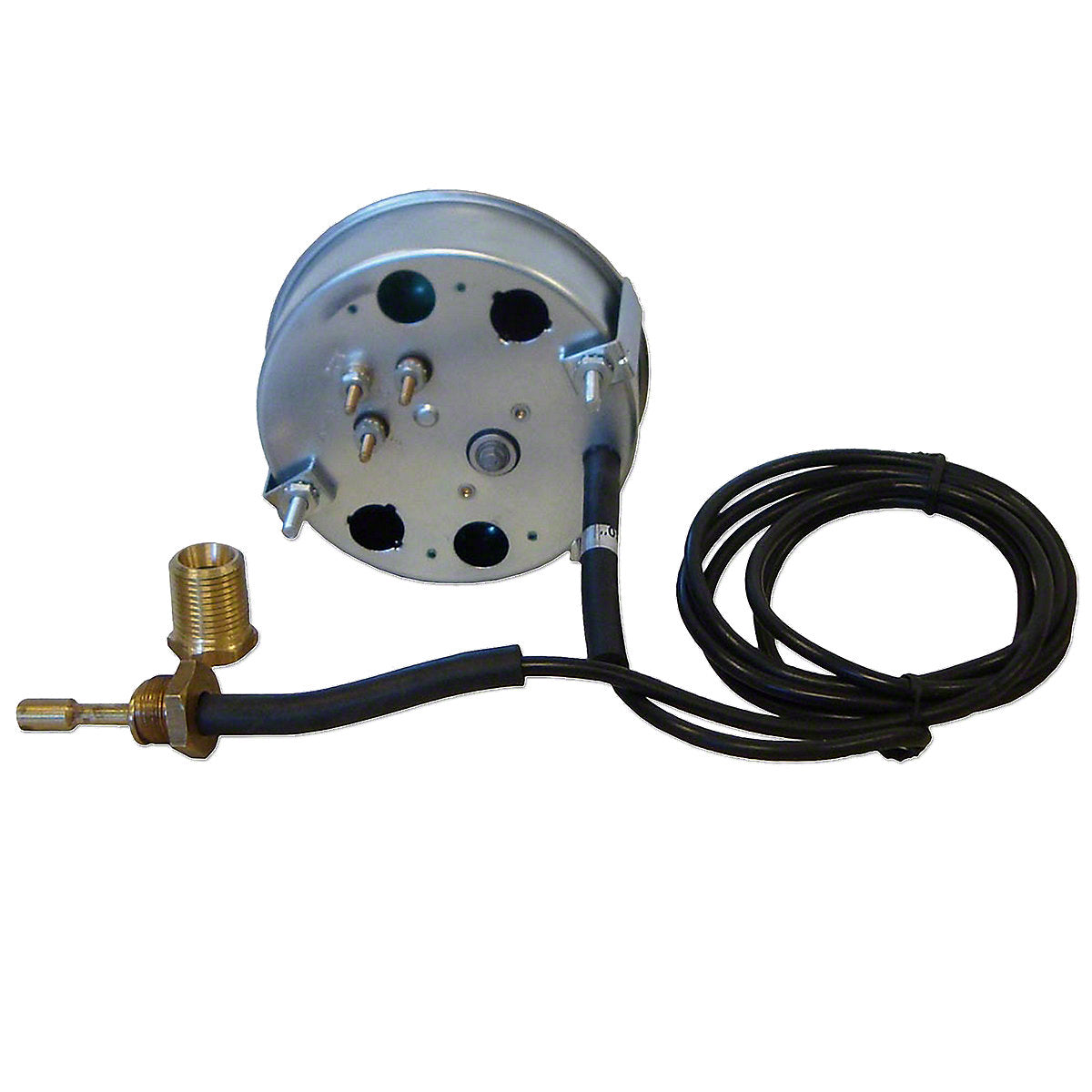

This gauge incorporates ring style terminals as did the original.
Replacement Numbers 382733R93, 396380R91, 397937R92, 397939R92, 539293R1, 1546480C1
Fits International Harvester IH (Hydro 70, Hydro 86, 666, 1026, 1206, 1256, 1456, 4166, 4186 Diesel Only), 404, 424, 444, 606 Serviceable for Gas Model (gauge face is different for temperature & will have a longer capillary tube); 504 Following Gas & Diesel; 656, 706, 756, 806, 826, 856 Gas & Diesel; Tractors
Specifications The lead thread size on this cluster gauge assembly measures 11/16"" - 24 UNEF 4.240"" housing outside diameter 1.230"" housing depth 80"" lead length White background Gauge must be grounded to work properly; you must run an extra ground wire to the sender ground. OHM reading 32 Full - 244 Empty.
This gauge incorporates ring style terminals as did the original.
Replacement Numbers 382733R93, 396380R91, 397937R92, 397939R92, 539293R1, 1546480C1
