Description

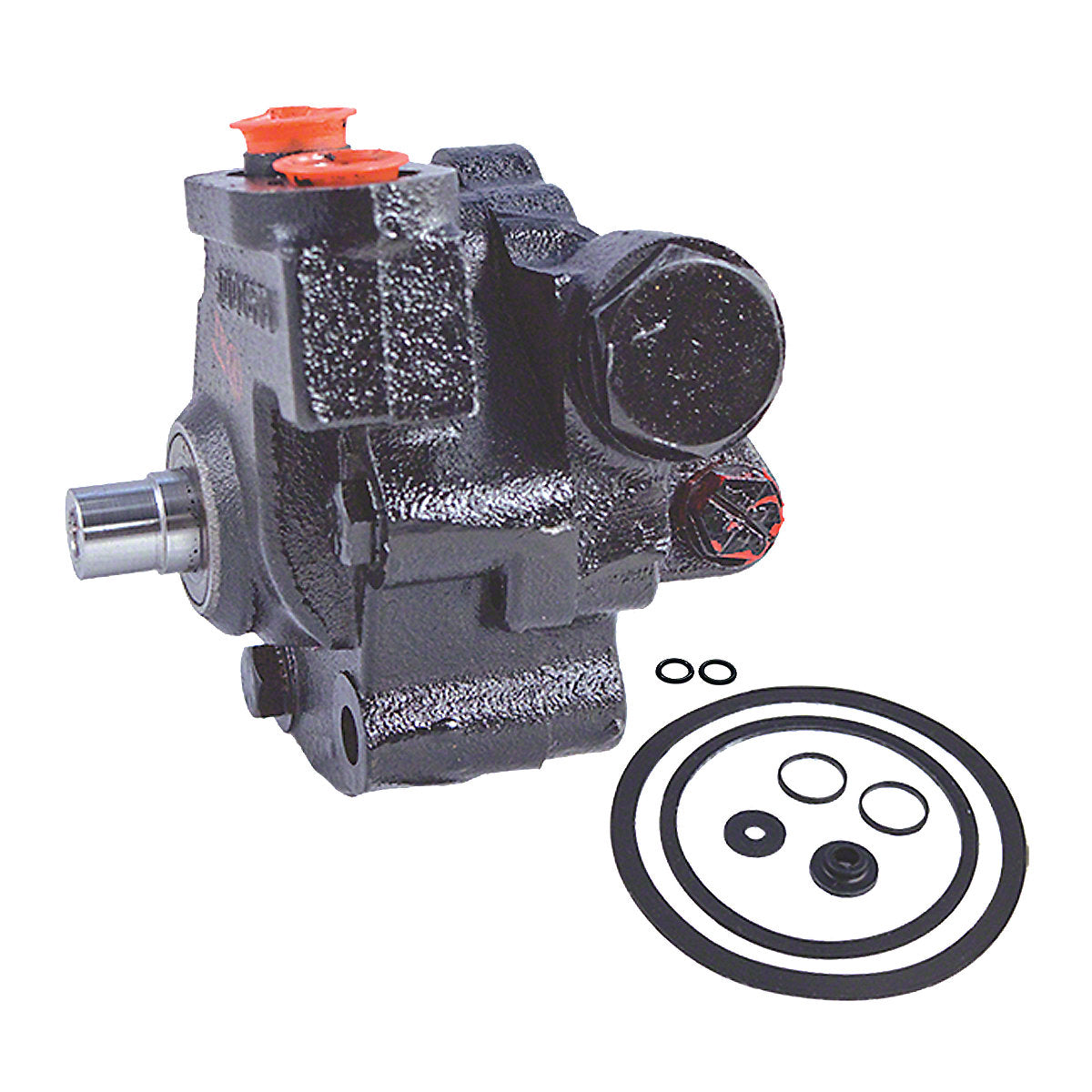

"Quality Aftermarket Belt Driven Power Steering Pump (Only for tractors using Eaton style pump)-Fits International Tractor 363185R91, Eaton P761, 20928, 503-1003, 503-1005-005
"Fits: International Tractor IH models: I6, ID6; H, HV, Super H, Super HV, M, MD, Super M, Super MD, Super MDV, MDV, MTA, Super MTA, MV, Super MV, O6, ODS6, OS6, Super W6, Super W6TA, W6, Super WD6, WD6, Super WD9, WDR9, WR9S, 300 Rowcrop, 350 Rowcrop, W400 W400, W450 W450, 600, 650
Specifications
Shaft diameter measures 0.670"
Shaft length (where pulley mounts) measures 0.575"
Pump housing is 2" thick (where bracket bolts to)
Shaft has a 1/8" woodruff key and is threaded for a 5/16" bolt
Flow @ 1500 RPM = 2.5 GPM
Pressure relief set @ 1200 PSI
Does not include brackets, top mounted reservoir or pulley.
Replacement Numbers
363185R91, Eaton P761, 20928, 503-1003, 503-1005-005
"Fits: International Tractor IH models: I6, ID6; H, HV, Super H, Super HV, M, MD, Super M, Super MD, Super MDV, MDV, MTA, Super MTA, MV, Super MV, O6, ODS6, OS6, Super W6, Super W6TA, W6, Super WD6, WD6, Super WD9, WDR9, WR9S, 300 Rowcrop, 350 Rowcrop, W400 W400, W450 W450, 600, 650
Specifications
Shaft diameter measures 0.670"
Shaft length (where pulley mounts) measures 0.575"
Pump housing is 2" thick (where bracket bolts to)
Shaft has a 1/8" woodruff key and is threaded for a 5/16" bolt
Flow @ 1500 RPM = 2.5 GPM
Pressure relief set @ 1200 PSI
Does not include brackets, top mounted reservoir or pulley.
Replacement Numbers
363185R91, Eaton P761, 20928, 503-1003, 503-1005-005
