Description
Premium Carburetor Repair Kit
Fits International Harvester IH Farmall M, MV, O6, OS6, T6, W6 Tractors all using 47387D, 47387DB, 47387DC, 50983D, 50983DB, 50983DC, 50983DD carburetor with throttle body # 6513D, 6513DX (all with 3.195"" throttle shaft length)
Specifications 3.195"" throttle shaft length
Premium carburetor repair kits include: throttle shaft throttle plate choke shaft choke plate throttle shaft bushings and packing metering nozzle brass plugs float pin needle and seat gaskets fuel strainer

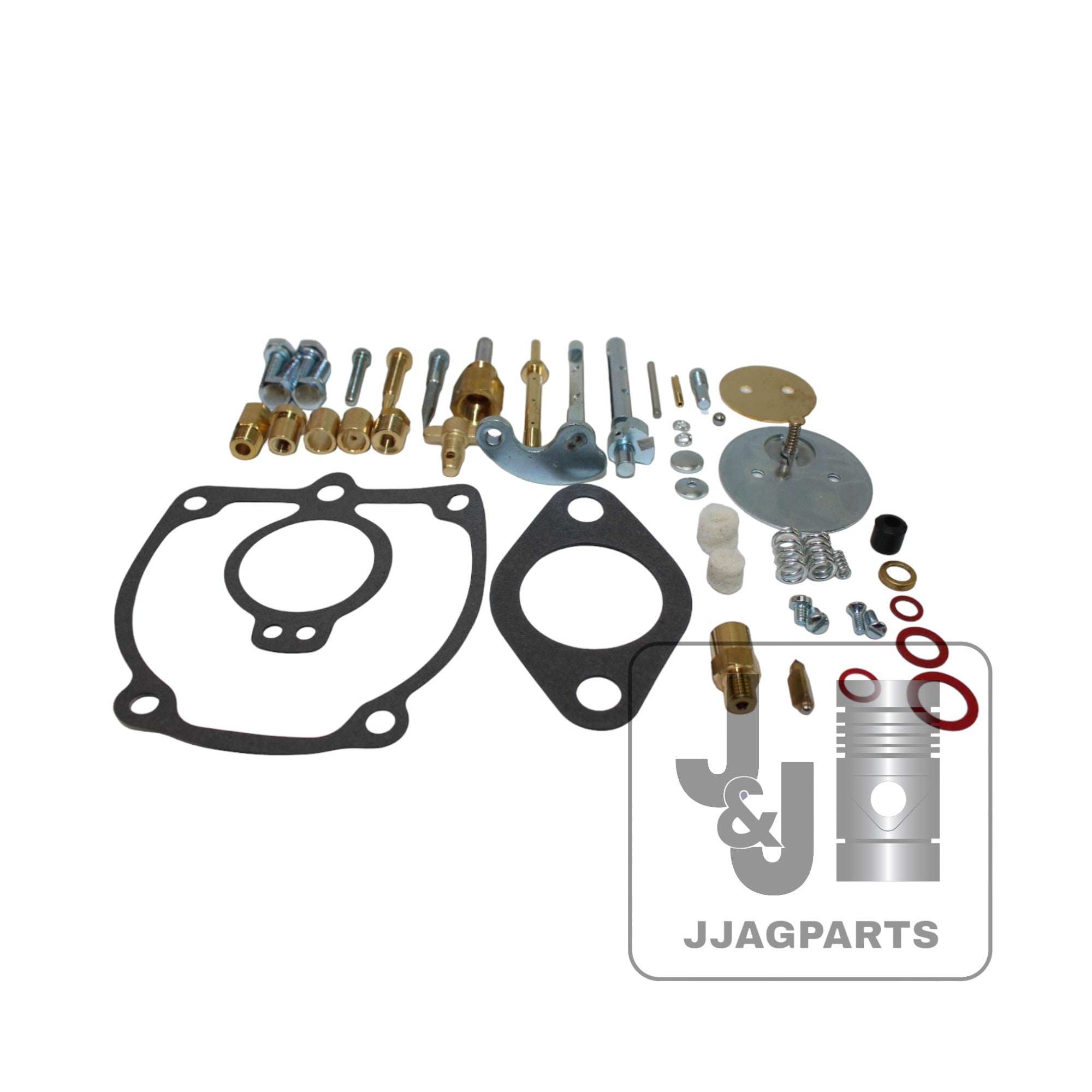

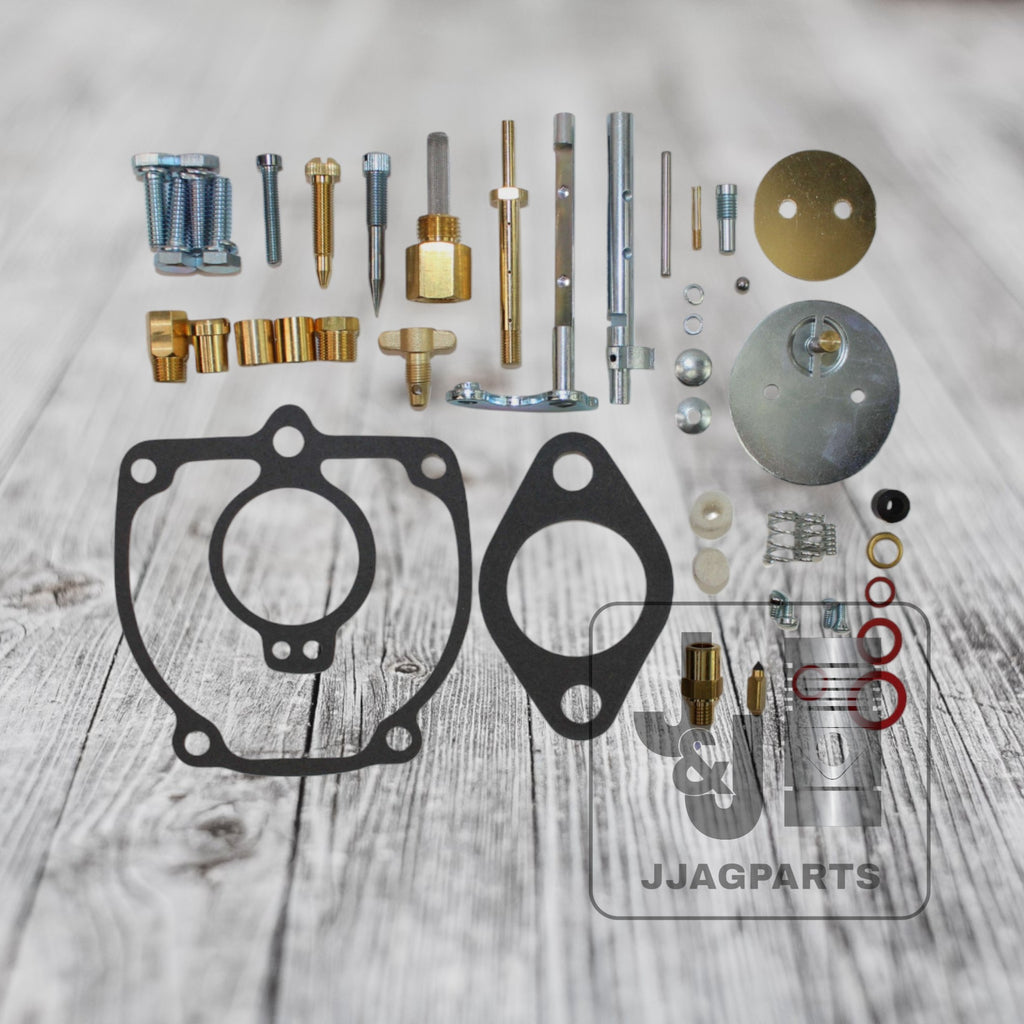

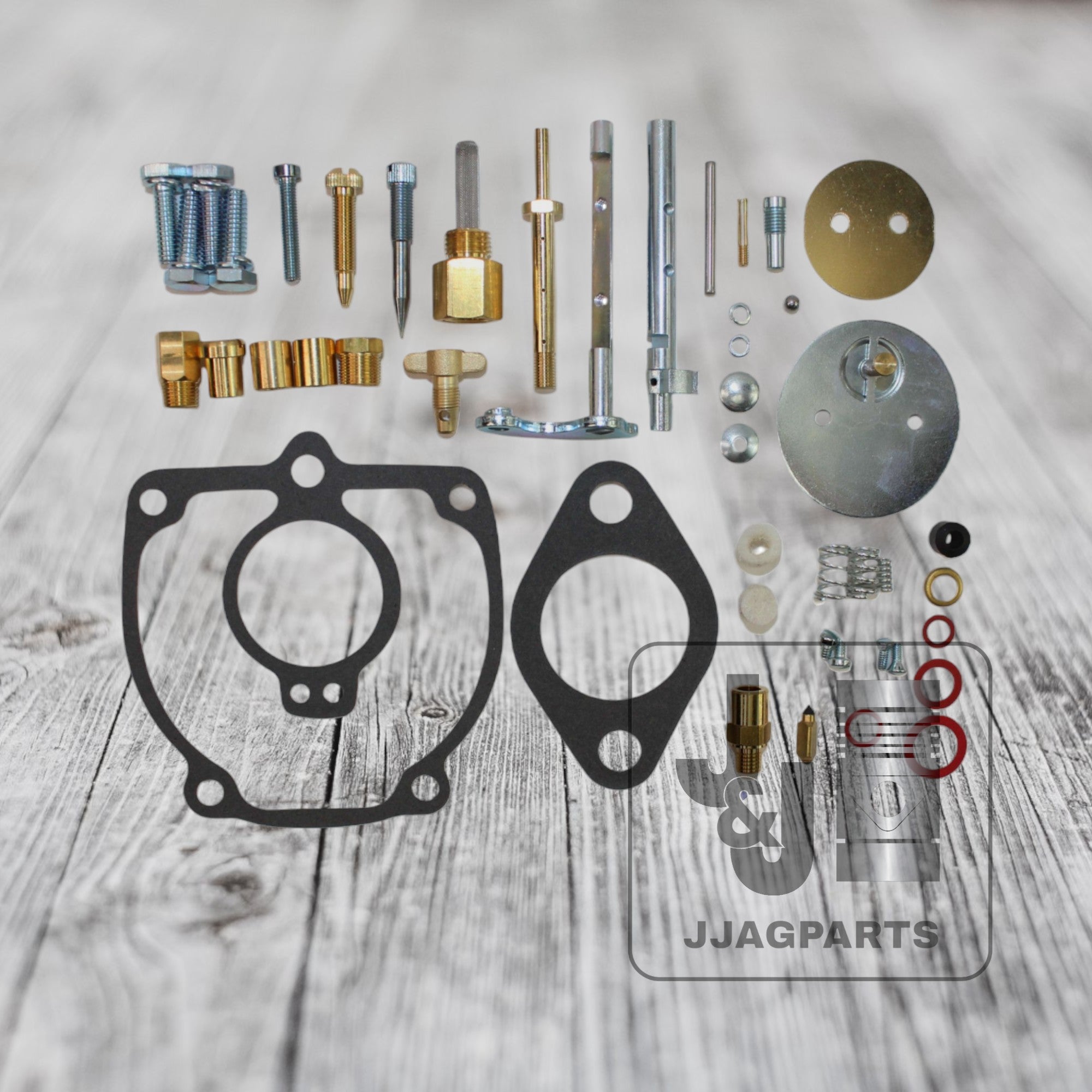

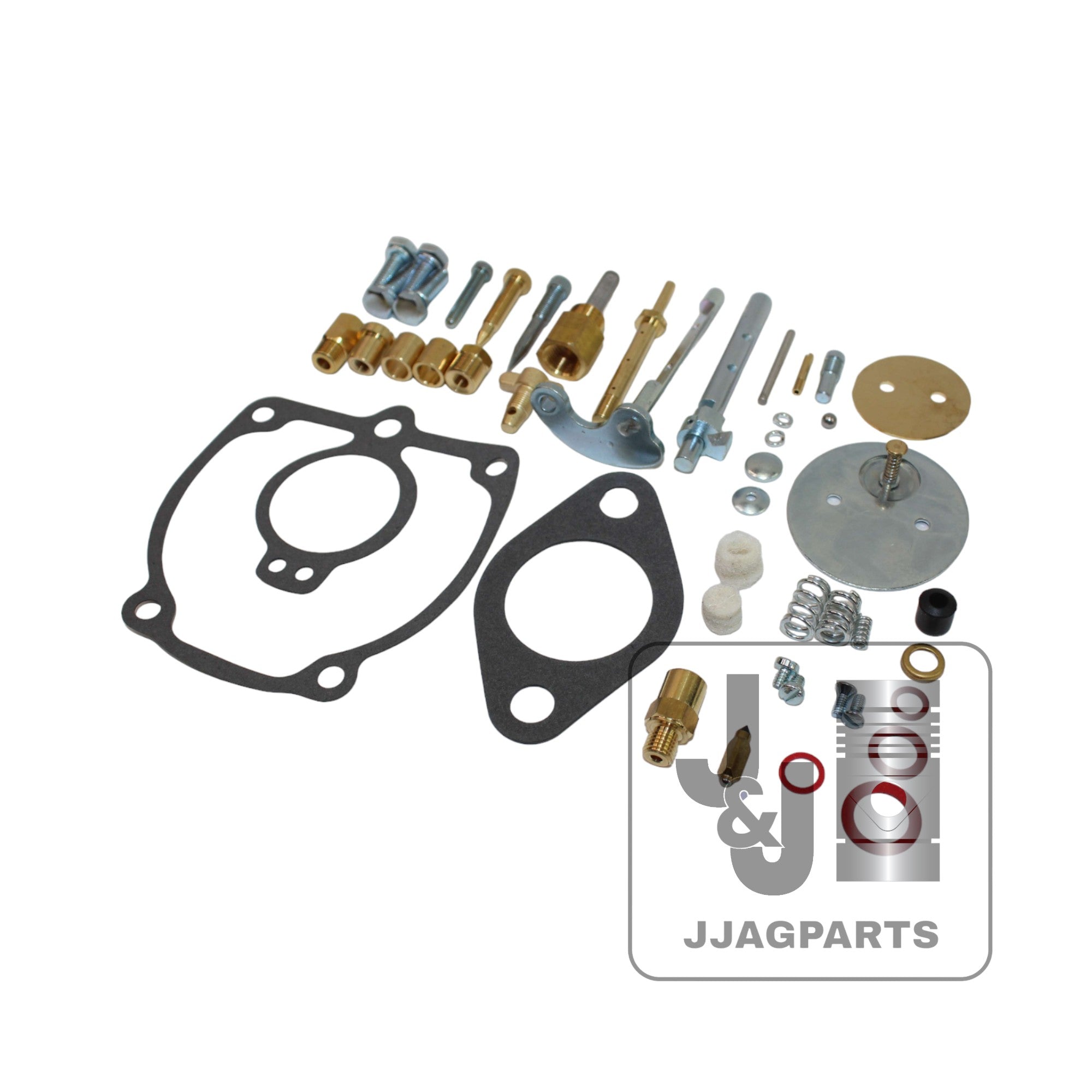

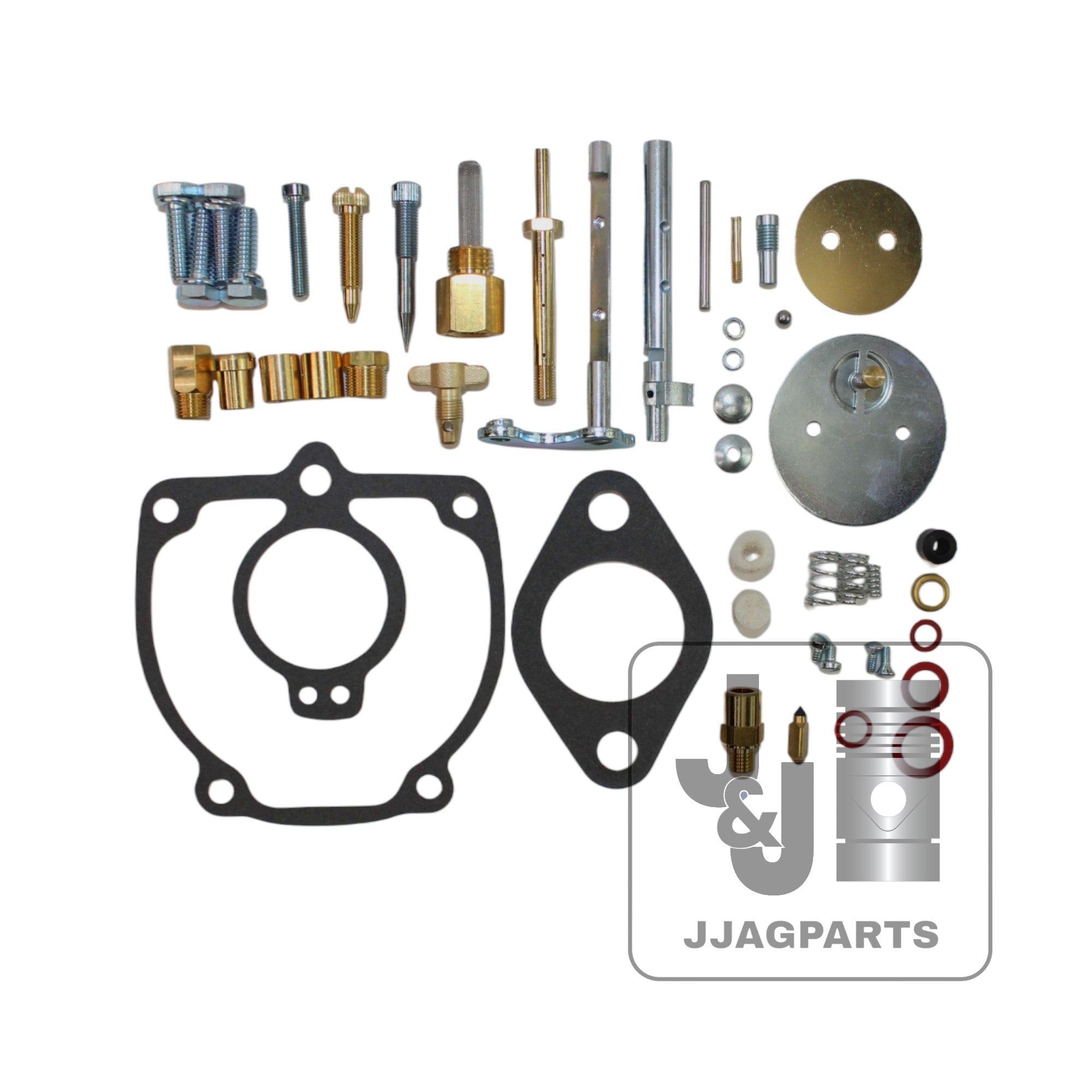

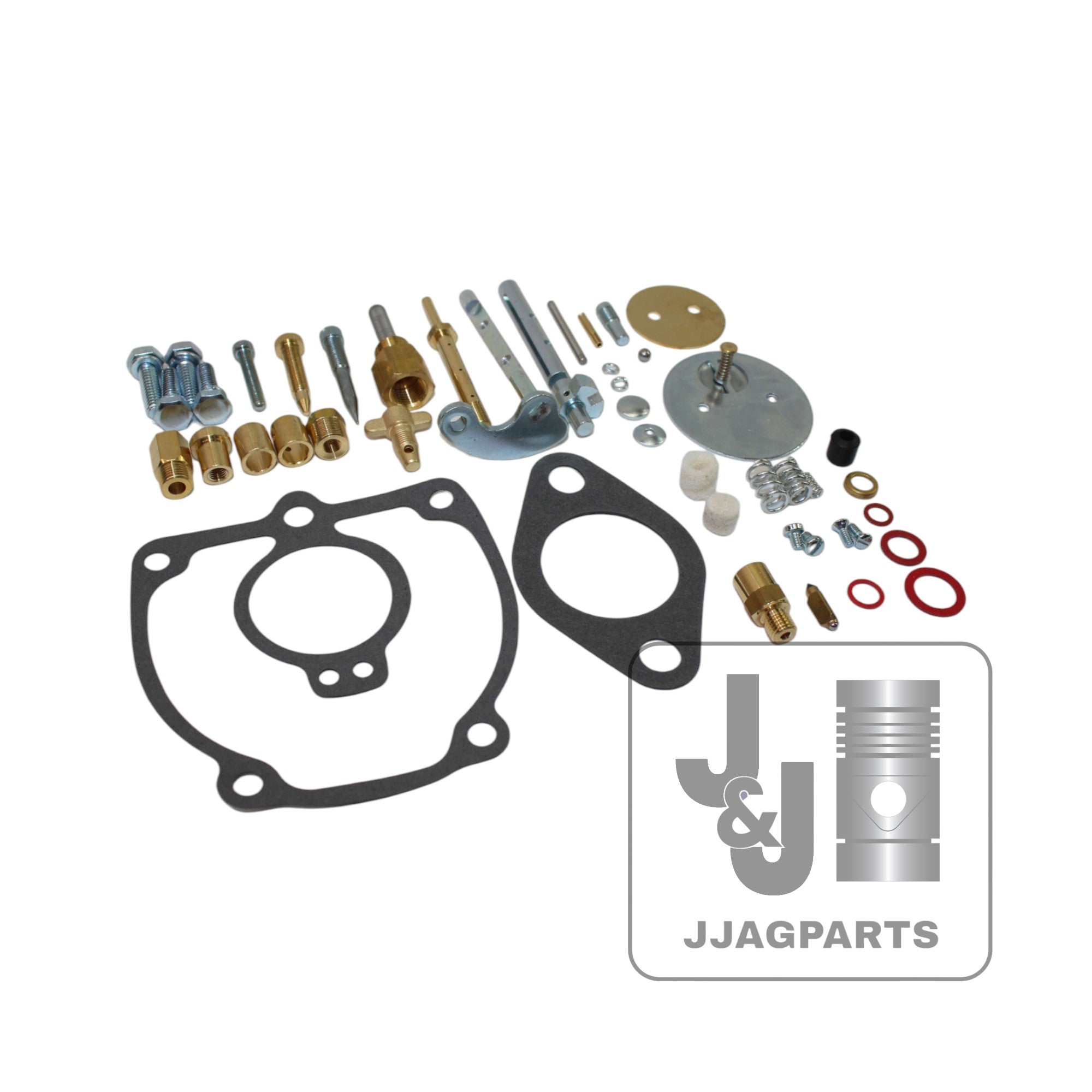

Includes parts shown in picture above For reassembly purposes only, instruction sheet and diagram may show parts that are not included in this kit.
Make sure to find your carburetor manufacturer number in the list below. If your number is not listed, this kit is not the correct kit for your application.
Carburetor Numbers 47387D,with throttle body 6513D or 6513DX, 47387DB,with throttle body 6513D or 6513DX, 47387DC,with throttle body 6513D or 6513DX, 50983D,with throttle body 6513D or 6513DX, 50983DB,with throttle body 6513D or 6513DX, 50983DC,with throttle body 6513D or 6513DX, 50983DD,with throttle body 6513D or 6513DX
Replacement Numbers 18377D, 186566, 21632D, 24685D, 24687DA, 24689D, 24693D, 24703DA, 25484D, 25948D, 29902DX, 31336D, 32615D, 352634R11, 352637R91, 354453R91, 354453R92, 354453R93, 413-414, 45148D, 45149DA, 46059D, 46184D, 47388DA, 47389DAX, 47391D, 47392D, 47395D, 47396DAX45, 47401D, 47402D, 47404DA, 492-11025, 49798D75, 52791R1, 530681R2, 56645DX, 56646D, 60947D, 67266DX, 9983TC
Fits International Harvester IH Farmall M, MV, O6, OS6, T6, W6 Tractors all using 47387D, 47387DB, 47387DC, 50983D, 50983DB, 50983DC, 50983DD carburetor with throttle body # 6513D, 6513DX (all with 3.195"" throttle shaft length)
Specifications 3.195"" throttle shaft length
Premium carburetor repair kits include: throttle shaft throttle plate choke shaft choke plate throttle shaft bushings and packing metering nozzle brass plugs float pin needle and seat gaskets fuel strainer
Includes parts shown in picture above For reassembly purposes only, instruction sheet and diagram may show parts that are not included in this kit.
Make sure to find your carburetor manufacturer number in the list below. If your number is not listed, this kit is not the correct kit for your application.
Carburetor Numbers 47387D,with throttle body 6513D or 6513DX, 47387DB,with throttle body 6513D or 6513DX, 47387DC,with throttle body 6513D or 6513DX, 50983D,with throttle body 6513D or 6513DX, 50983DB,with throttle body 6513D or 6513DX, 50983DC,with throttle body 6513D or 6513DX, 50983DD,with throttle body 6513D or 6513DX
Replacement Numbers 18377D, 186566, 21632D, 24685D, 24687DA, 24689D, 24693D, 24703DA, 25484D, 25948D, 29902DX, 31336D, 32615D, 352634R11, 352637R91, 354453R91, 354453R92, 354453R93, 413-414, 45148D, 45149DA, 46059D, 46184D, 47388DA, 47389DAX, 47391D, 47392D, 47395D, 47396DAX45, 47401D, 47402D, 47404DA, 492-11025, 49798D75, 52791R1, 530681R2, 56645DX, 56646D, 60947D, 67266DX, 9983TC
