Description
Basic Zenith Carburetor Repair Kit
Fits: International Harvester IH Farmall A, AV, B, BN, Super A, Super A-1, Super AV, Super AV-1 Tractors (All w/ 9748, 9749, 9752, 10514A)
Specifications
Kit includes: throttle shaft needle and seat float lever pin choke and throttle shaft seal needle valve adjustment screw gaskets instructions

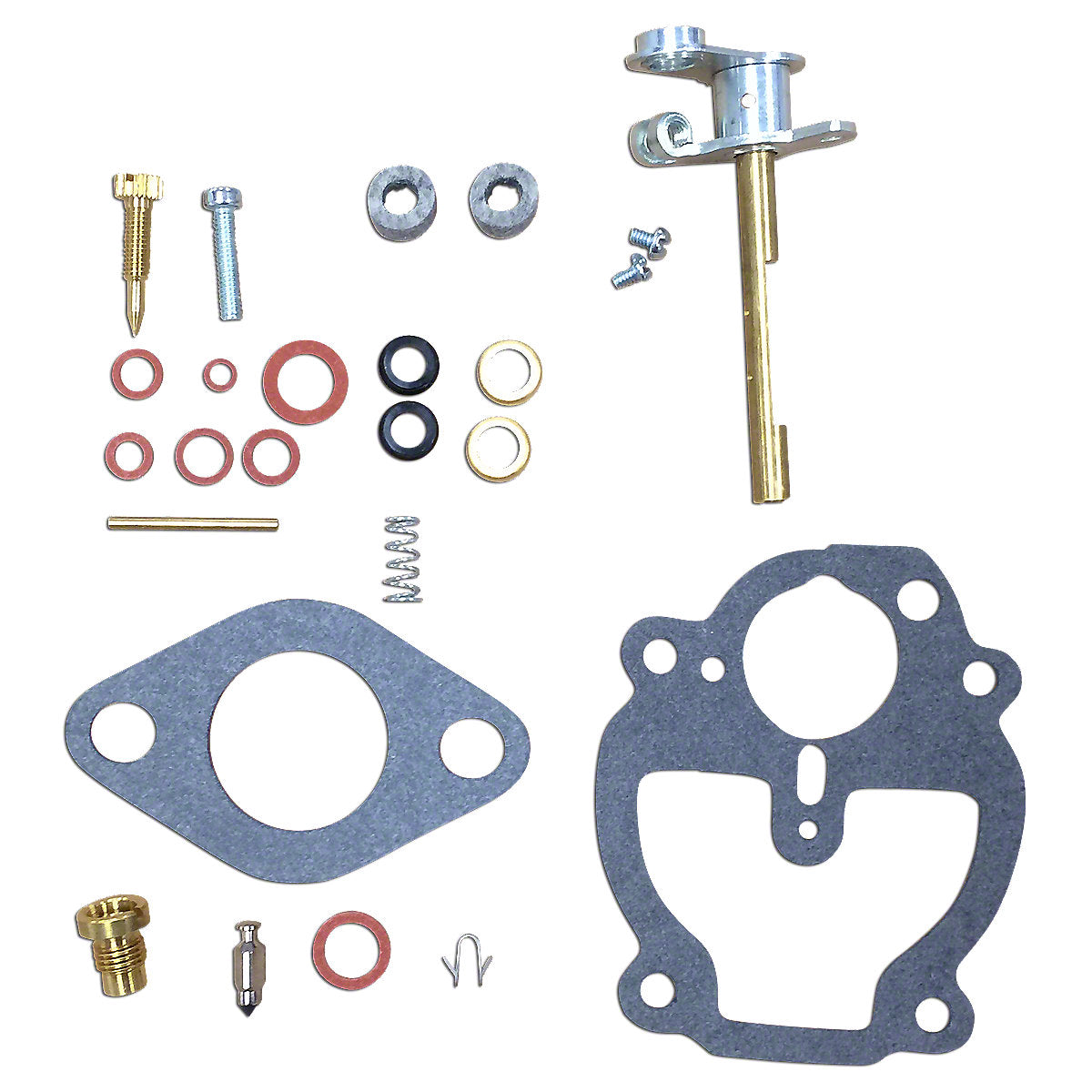

Includes parts shown in picture above. *For reassembly purposes only, instruction sheet may depict parts that are not included in this kit.
Make sure to find your carburetor manufacturer number in the list below. If your number is not in this list, this kit is not the correct kit for your application.
Replacement Numbers
352376R92, 48616DC
Fits: International Harvester IH Farmall A, AV, B, BN, Super A, Super A-1, Super AV, Super AV-1 Tractors (All w/ 9748, 9749, 9752, 10514A)
Specifications
Kit includes: throttle shaft needle and seat float lever pin choke and throttle shaft seal needle valve adjustment screw gaskets instructions
Includes parts shown in picture above. *For reassembly purposes only, instruction sheet may depict parts that are not included in this kit.
Make sure to find your carburetor manufacturer number in the list below. If your number is not in this list, this kit is not the correct kit for your application.
Replacement Numbers
352376R92, 48616DC
