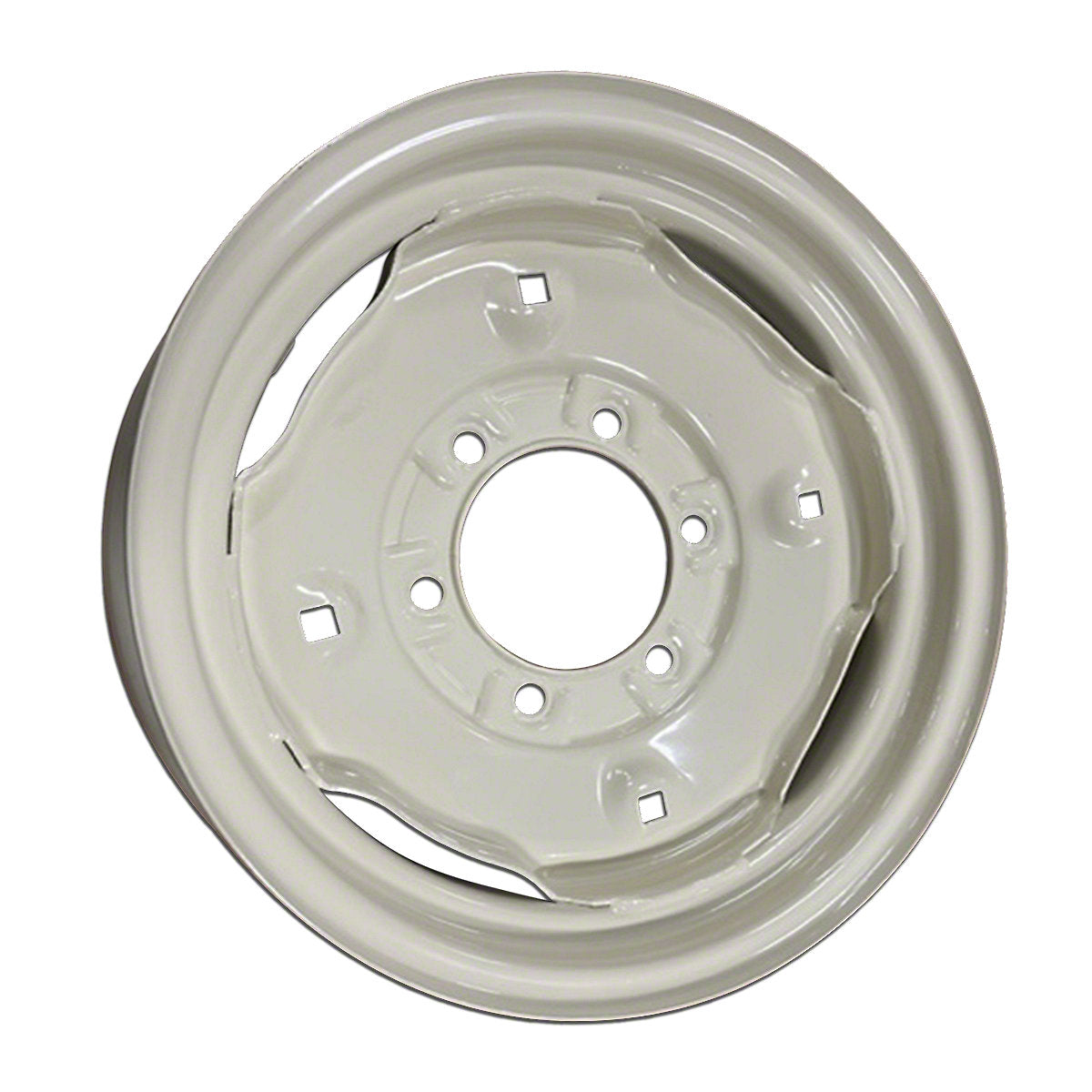

Front Wheel 6 Lug fits Minneapolis Moline Tractor | 3" x 15" | 11A1136

Quality Aftermarket Front Wheel 6 Lug

Fits Minneapolis Moline Tractor Models:
RTE, RTS (SN 0024900001 and up), RTU (SN 0014900001 and up)

It is recommended to measure BEFORE purchase. A different size may have been installed on your tractor at one time. Please contact us if you'd like further verification before you purchase.

JJAgParts is not responsible for return shipping on misordered rims.

Specifications

• Use with 4.00 x 15" - 5.50 x 15" tires
• 3" wide (bead to bead) x 15" diameter (bead to bead)
• 6 lug bolt hole
• 4.625" inside diameter pilot
• 3" center to center lug bolts
• 3.25" backspacing
• 4.750" center hole diameter
• Yellow powder coat paint

To determine backspacing, lay the wheel flat on the ground with the back of the wheel facing up. Next, lay a straightedge across the wheel and measure the distance from the backside of the mounting surface to the straightedge.

To determine width of rim, measure on the inside (bead to bead), NOT outside to outside.

Use with new lug bolts / nuts.

Also used as a light weight rim for antique pulling tractors.

Not designed for tubeless applications

Replacement Numbers
11A1136
