Seat Suspension Repair Kit 49-Piece fits John Deere Tractor | Deluxe Seat

SKU: JJS10221
JJagparts

Price:
Sale price$238.99

Description

Quality Aftermarket 49-pc. Seat Suspension Repair Kit For Deluxe Seat

Fits John Deere Tractor Models: 500, 2010, 2510, 2520, 3010, 3020, 4000, 4010, 4020, 4320, 4520, 4620, 5010, 5020, 6030, 7020, 7520
All models using deluxe 3-piece seat cushions.

Specifications

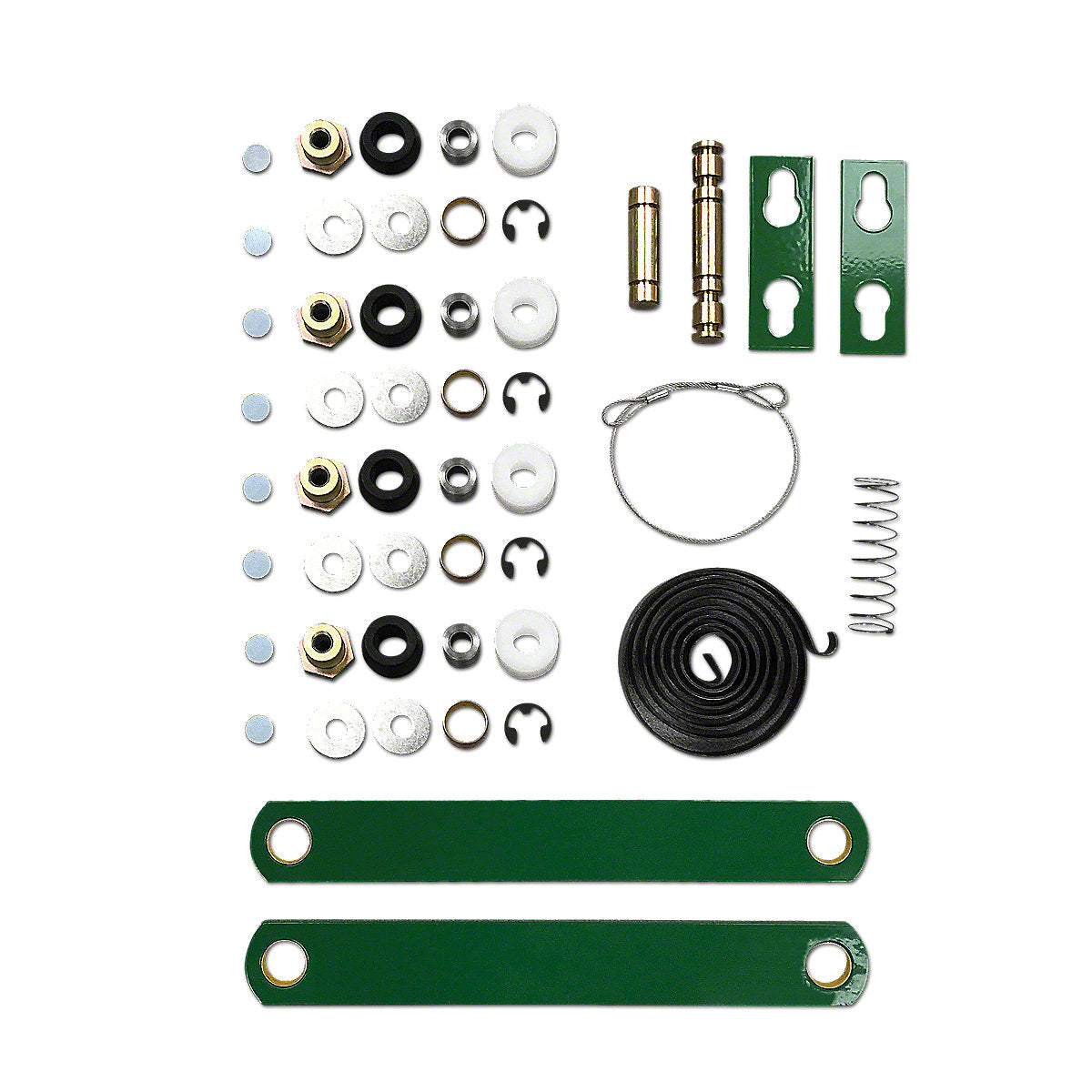

This 49 piece repair kit is for John Deere tractors with a deluxe seat. It includes the following components:
  • (1) JJS10238 - Pin
  • (1) JJS10240 - Pin
  • (4) E-clips - for the pins
  • (4) JJS10237 - Bushings
  • (1) JJS10245 - Spring
  • (4) JJS10175 - Plastic rollers
  • (1) JJS10975 - Shim Kit [(0.010") x 4 pcs + (0.020") x 4 pcs] fits in JJS10175 rollers
  • (4) JJS4345 - Rubber bushings
  • (1) JJS10236 - Cable
  • (2) JJS10243 - Flat links
  • (1) JJS10239 - Flat spring
  • (8) JJS10177 - Washers
  • (4) JJS10176 - Bushings/Washers
  • (4) JJS11402 - Seat link nuts
  • (2) JJS10785 - Seat suspension links - Each suspension link has two JJS10176 bushings installed, so technically this kit has 53 pieces
Some John Deere tractors may require two more JJS10176 - Bushings/Washers. Please view the JJS10176 product detail page for a count for each model.

The four (4) JJS10176 bushings are installed in the two (2) JJS10785 seat suspension links.

Also if your seat frame is really worn you will need to purchase an extra JJS10975 shim pack or reuse some of your old ones.

Replacement Numbers
A4744R - Spring
AR26403 - Cable
R26433 - Flat spring
R26436 - Plastic rollers
R26832 - Rubber bushings
R26875 - Pin
R26876 - Pin
R26878 - Flat links
R27440 - Bushings
R27441 - Washer
R31260 - Flat spring
R36704 - Bushing / washer
R51648 - Bushing / washer
R78257 - Cable
