Description

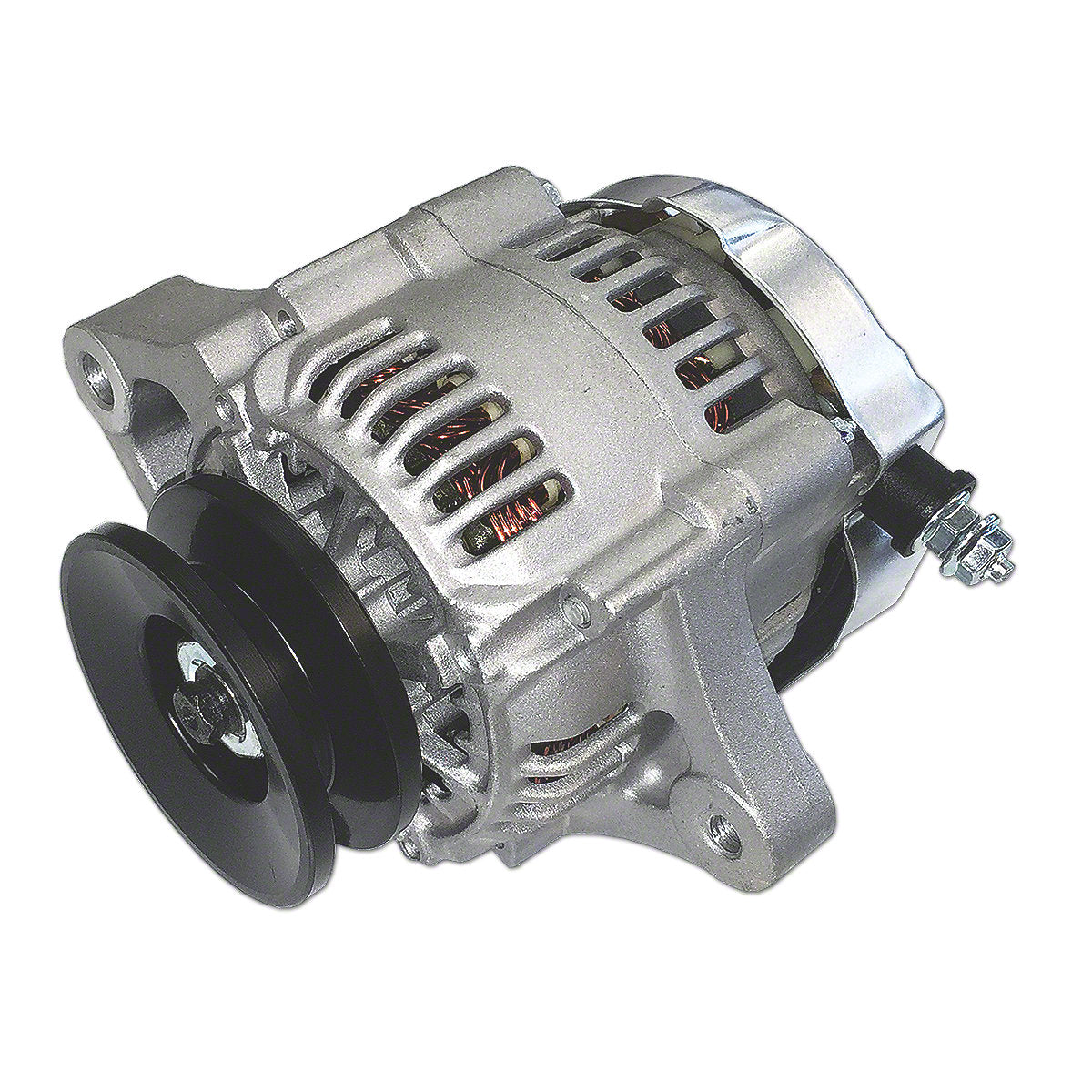

Quality Aftermarket: Mini 35 Amp Alternator w/ Pulley
Fits: Ford Tractor 9N, 2N, 8N, NAA; 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 651, 660, 671, 681, 700, 701, 702, 703, 713, 723, 740, 741, 760, 771, 775, 800, 801, 811, 820, 821, 841, 850, 851, 860, 861, 871, 881, 900, 901, 941, 950, 951, 960, 961, 971, 981, 2000, 4000 4-cyl., 500, 6000, 6600, 7000, 8000, 9000
Specifications
435 Amp
1 wire hook up
Built in regulator
Works with magneto or distributor ignitions
4-1/2" housing diameter
2-3/4" pulley outside diameter
1/2" belt width
For negative ground systems only
Simple 1 wire alternator hook up: Run a wire from the alternator through the ammeter to positive side of battery. Must rev the engine to 800 - 850 RPM in order to self-excite.
If you need a 5/8" pulley please view JJAB2315
Replacement Numbers
Fits: Ford Tractor 9N, 2N, 8N, NAA; 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 651, 660, 671, 681, 700, 701, 702, 703, 713, 723, 740, 741, 760, 771, 775, 800, 801, 811, 820, 821, 841, 850, 851, 860, 861, 871, 881, 900, 901, 941, 950, 951, 960, 961, 971, 981, 2000, 4000 4-cyl., 500, 6000, 6600, 7000, 8000, 9000
Specifications
435 Amp
1 wire hook up
Built in regulator
Works with magneto or distributor ignitions
4-1/2" housing diameter
2-3/4" pulley outside diameter
1/2" belt width
For negative ground systems only
Simple 1 wire alternator hook up: Run a wire from the alternator through the ammeter to positive side of battery. Must rev the engine to 800 - 850 RPM in order to self-excite.
If you need a 5/8" pulley please view JJAB2315
